Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A

China Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A supplier
Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A supplier Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A supplier

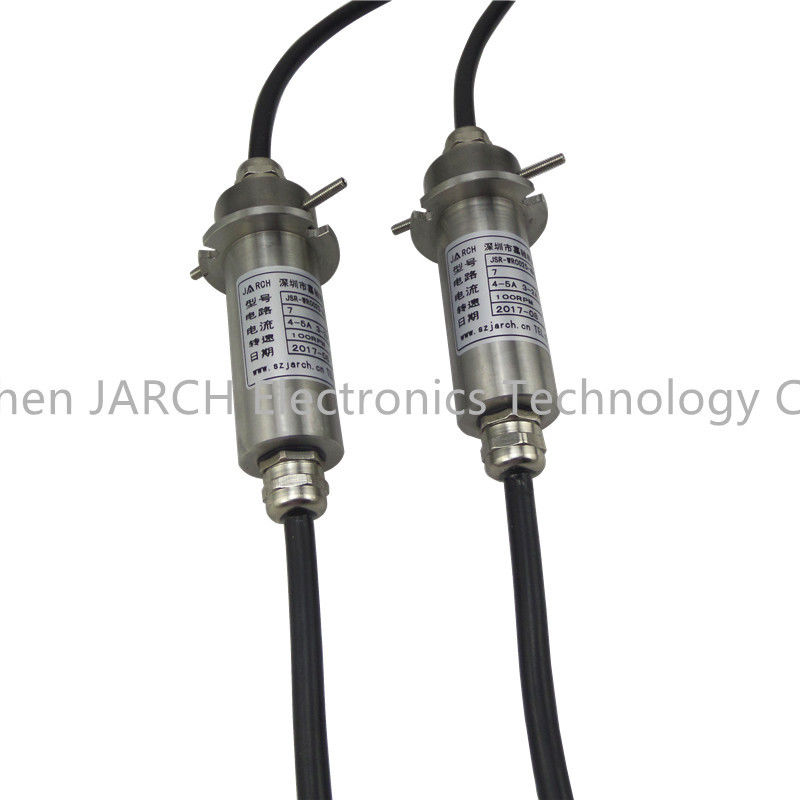

Large Image :  Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-WRC025-4P06-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 10 - 30 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500CS/week
Contact Now
Detailed Product Description
Singnal: 3 Current: 6A
Circuits: 4 Protection: IP68
Usage: Offshore And Marine Name: Sealed Slip Ring
Style No.: JSR-WRC025-4P06-3S

Waterproof 4 Circuits 6A, Miniature Slip Ring With Sealed Mercury Contacts Used in Rotating fountain 3D fountain

Quick Details:



Model Number:

JSR-WRC025-4P06-3S

Inner Size(mm): 0 mm
Outer Size: -- BOX  Circuits: 4
Volt AC/DC(V): mV~400Vac/Vdc Current(A):  6A
Speed(rpm):   Protection: IP68





Description:


No inner hole, flanged structure,

6 a 4 road

3 road signal

Protection class IP68

It can work 10 meters under water

For rotating fountains, 3D fountains

The internal structure is made of precious metal brushed wire, with long life and no maintenance.

Small structure, price advantage

Can be customized according to customer requirements



Static sealing with O-ring and dynamic sealing of rotation position with abrasion resistant & anti-corrosion Glyd ring for longer life

  • Designed for underwater operations, waterproof work and design.
  • Industrial grade products, stator flange, IP65, IP68 protection class.
  • Gold - gold contact, the use of imported seals and military grade plating treatment.
  • Multi-point contact contact, outlet using waterproof Glen, cable and so on.
  • Can be customized according to the requirements.



Technical Data
Circuits No 8 Circuits Current 5A
Voltage 440 VDC/VAC Max speed 300RPM
Housing material S136L Stainless steel Torque 0.1N.m;+0.03N.m/6 circuits
Working life

>80millions revolutions(depends

on working speed,environment)

Contact material Precious metal:gold-gold
Electrical Noise <10mΩ @6VDC,50mA,5RPM Contact Resistance <20mΩ(AWG16#,300mm)
Dielectric Strength 800VDC@50Hz,10s Lead wire Spec UL Teflon@Awg22(5A),Awg16
Insulation Resistance 1000MΩ@600VDC,10s Lead wire length 300mm
Work Temperature -40℃ to 85℃ IP grade IP68
Mechanical vibration MIL-SID-810E Work Humidity 10% to 85% RH
Signal 12 Signals Underwater operation depth 50 meters
Inside material precious metals Certificate CE,FCC





Benefits:

  • Up to hundreds Ampere
  • Transfers control and data signals
  • IP66 optional
  • FIt to Offshore working environment
  • No maintenance and better reliability than traditional sling rings
  • Suitable for signal and power transfer of rotating devices or instruments

Dimensions:

The Dimensions of Slip Ring Wil Be Advised When Rings And  Current Details Are Options . Please Contact JARCH Technical Department.









Applications:



• offshore Crane machine

• Industrial machinery

• rotary index tables

• Heavy equipment turrets or cable reels

Floating Crane

• Portal Slewing Crane







Installation Instructions



Shaft Mounted



Flanged 8 Circuits Miniature Slip Ring With Sealed Mercury Contacts 6A





Flange mounted:



Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
