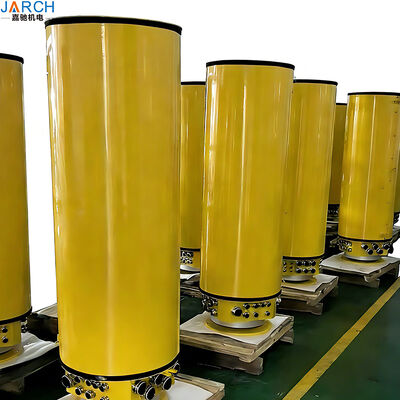

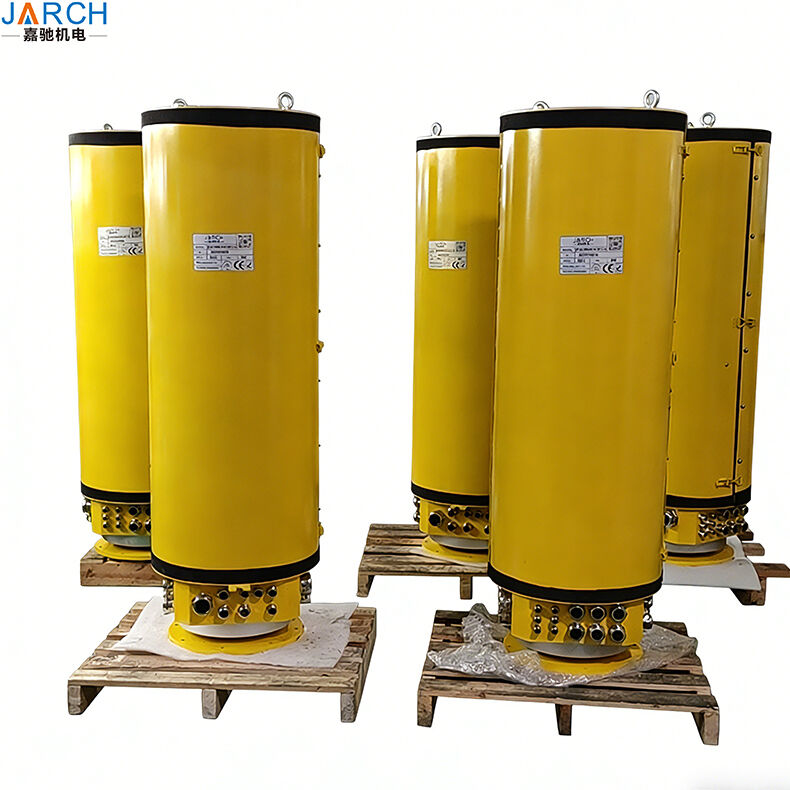

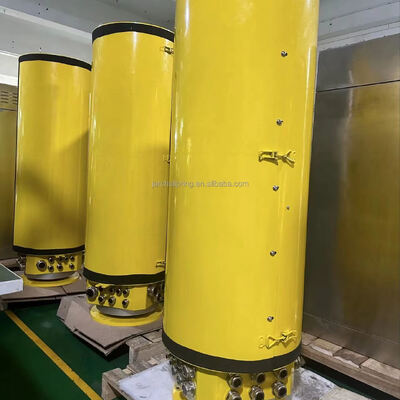

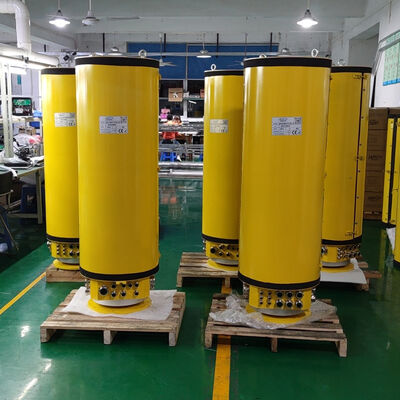

High Voltage cable reel Slip Ring Tower Crane 12.5kv slip Ring Central Collector Ring for 15kv Crane

1. About Slip ring

JARCH Slip Rings are electromechanical devices for transmitting electrical power, control signals, and/or data from a stationary to a rotating structure (or vice versa). We offer a complete range of slip rings for transmitting voltage from mV to 36 kV and currents from mA to 3600 A. All the series are suitable to be mixed with signals and data. Customized solutions can go further reaching up to 13000 A and 43.2 kV. We always apply the best technology to meet your needs: double or multiple brushes, gold wires or bundle wire contacts. We can provide composition from a few poles to several hundreds, based on the requirements of your application. Slip Ring Assemblies can be supplied either as open, “non-enclosed” types for special customer adaptations, or totally enclosed with high impact plastic or metal housing, suitable even for hazardous locations. Additional rotating couplings are available for fluids or gases and fiber optic swivels can be integrated.

2. Product Overview:

Our JARCH industrial-grade slip rings are engineered to provide reliable transmission of power, signals, and data in rotating applications. Designed for durability and precision, they are widely used in wind turbines, robotics, cranes, packaging machines, and medical equipment. With low electrical noise, high-speed stability, and long service life, our slip rings ensure continuous 360C rotation without cable tangling.

3. Crane Slip ring parameters:

3.1 Component Name: Conductive slip ring JSR-BCX-8P400-9P150-20P25-10S

3.1.1 Temperature of the working environment: -40℃ ~ + 40℃

3.1.2 Protection level: IP64

3.1.3 Operating voltage: DC 24 V/AC400V

3.1.4 Working speed: 0~2rpm

3.1.7 Insulation resistance: 500 MΩ, the dynamic resistance fluctuation value is less than 30m Ω

3.1.8 Number of rings: 62 rings in total,

3.1.9 Power supply ring current:

8 rings - 400 А , ED100%, 400 V

9 rings - 150 А , ED100%, 400 V

20 rings - 21 А , ED100%, 400 V

10 rings - 20 mA, ED100%, 10V :

Body weight: 160kg

3.2 Appearance and installation dimensions drawing

4. Slip ring Key Features & Benefits:

1. Robust & Long-Lasting

***Built with gold alloy wire contacts and advanced brush technology for minimal wear.

***Maintenance-free operation with a lifespan exceeding 10 million rotations.

***High Temperature Resistance from -40C to 80C, suitable for harsh environments.

2. Superior Signal Integrity

***Low electrical noise (<0.5 contact resistance) ensures stable transmission.

***Supports mixed transmission of power, Ethernet (CAT5/CAT6), USB, HD video, and sensor signals.

***Ideal for servo motor feedback, encoder signals, and CAN bus in automation.

3. Compact & Versatile Design

***Available in capsule, through-bore, and pancake types.

***Miniature slip rings (from 10mm diameter) for space-constrained applications like robotic joints and CCTV cameras.

***Customizable bore sizes (6mm to 300mm) and circuit configurations (1 to 100+ circuits).

4. Built for Tough Conditions

***IP54, IP65, or IP67 protection available for dust-proof and waterproof performance.

***Corrosion-resistant housing, perfect for offshore wind farms, marine applications, and outdoor cranes.

***High vibration and shock resistance for heavy machinery.

5. Applications (Where It Is Used):

Wind Energy: Pitch control systems, yaw drives, condition monitoring.

Robotics: Robot arms, collaborative robots (cobots), AGVs, welding robots.

Material Handling: Gantry cranes, stacker cranes, rotary tables, packaging lines.

Medical & Defense: CT scanners, radar systems, panoramic cameras.

Industrial Automation: Revolving stages, indexing tables, cable management.

RFQ

1. Do all the published standard items have 2D drawings and 3D drawings?

Yes, sure. email us at kris@szjarch.cn for more information.

2. Which medium slip rings can be customized, and what parameters are required?

Through the medium: gas, liquid, electricity,Ethernet, optical fiber, gas-liquid-electric mixing and so on

3. For electrical slip rings, the parameters below are required:

a. Circuits number (ring numbers), current, voltage, rotating speed, temperature, protection grade;

b. Whether transmitting signal is required? What kinds of signal? Whether the signal should be shielded?

c. The inner diameter (ID), the required length, width, height. Any specific requirements for them? For example, the

maximum height should be under XXmm.

4. For pneumatic or hydraulic slip rings, the parameters below are required:

a. What kind of gas or liquid is it? Our slip rings can transmit pneumatic(vacuum, air, gas...), hydraulic (oil, water, cold liquid...), etc.

b. Pressure, rotating speed, the temperature of the medium being transmitted;

c. Port size: G1/8 or PT1/4, etc.;

d. The inner diameter (ID), the required length,width, height; Any specific requirements for them? For example, the maximum height should be under XXmm.

e. The acceptable maximum torque of the slip ring;

f. How to install? Fix the screws into the rotating shaft or install with flange?

5. For Ethernet, the parameters below are required:

a. 1000M or 100M;

b. Circuits number (ring numbers), current, voltage, rotating speed;

c. Whether transmitting signal is required? What kinds of signal? Whether the signal should be shielded?

d. The inner diameter (ID), the required length, width, height. Any specific requirements for them? For example, the maximum height should be under XXmm.

6. A correct installation, operate under the maximum rotating speed and the right environment are good for extending the working life of the slip rings.
