2A Per Circuit Capsule Slip Ring , Smoother Running Mini Miniature Slip Ring
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 10 - 30 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Outer Size:||12.4mm||Lead Length:||250mm|
|Contact Material:||Precious Metal:Gold-Gold||Housing Material:||Aluminium Alloy|
|Circuits:||12||Current:||2A Per Circuit|
miniature slip ring,
mini slip ring

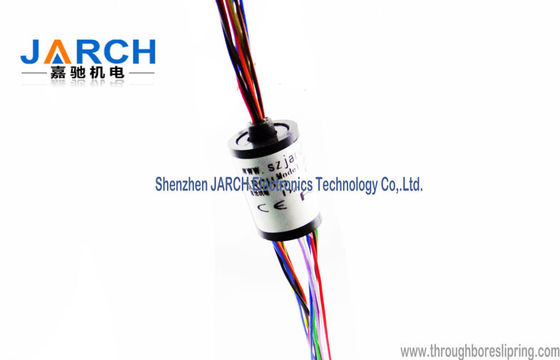

Smoother running Mini Miniature Slip Ring / capsule slip ring
|Model Number:||JSR-CS012-12Q||Current Rating:||2A/Ring maximum|
|Volt AC/DC(V):||mV~240Vac/Vdc||Contact Material:||Gold-Gold contacts|
|Speed(rpm):||250RPM||Lead Wire:||UL Teflon Awg28,color-coded,|
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
Delivery time for Sample 3 days /Delivery time for Order depends on quantity
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The CS012-12Q, with 12 wires and compact 12.4mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
|Operating Speed||0-250 rpm|
|Number of Circuits||12|
|Current Rating||2A per circuit|
|Temperature Range||-20°Cto +60°C|
|Contact Material||Gold to Gold|
|Lead Size||28# silver plated copper|
|Lead Length||Standard 250 mm(9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||100 MΩ @ 500 VDC|
