Optical Channel: 1 Circuits: 4
Wavelength Range: 650-1650nm Current: 5A
Insertion Loss: ≤2 DB (typical: <0.5 DB) Insertion Loss Ripple: <+/-0.25 DB
Return Loss: ≥40 DB Optical Power Handling: 23 DBm
Dimensions: 6.8mm Diameter*28mm Length Max Speed: 2000RPM
High Light:

rotating electrical connectors

,

fiber optic rotary joints

Product Description

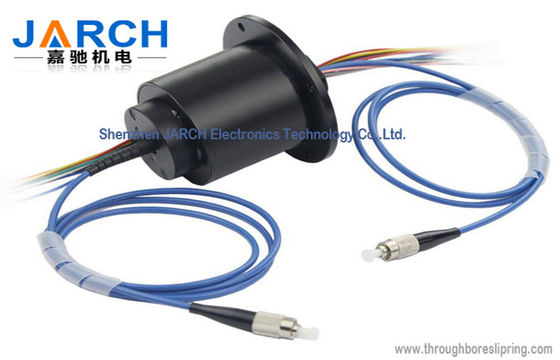

Fiber optic rotary joint with 4 circuits 5A of electric optical rotary joint



Quick Details:



Model Number: JSR-FE012-4S Optic Channnel: 1
Insertion loss ripple: <+/-0.25 dB Wavelength range: 650-1650 nm
Return loss (SM&MM): >40 dB(RPT), Insertion loss: <2.0dB
Electrical circuits: 4 current:5A



Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Optic-electric slip ring, provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic slip rings, call optical-electrical hybrid slipring, transmit power and high speed data.



Benefits:



  • Special fit for fiber optics and electrical circuits.
  • Available in single and multi-channel options
  • 1-125 electric circuits Combination + 1 channel fiber optics

Dimensions:

4 Circuits 5A Electro Optical Slip Ring 0

Installation Instructions:



4 Circuits 5A Electro Optical Slip Ring 1



Optic rotary joint Specifications



Wavelength range 650-1650 nm Insertion loss ≤2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB Return loss (SM) ≥40 dB
Maximum speed 2,000 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g IP rating IP 68 for all models
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G



Electrical slip ring Specifications



Rings 4 Current Signal 5A,
Voltage mV~200 VDC/VAC Max speed 1000RPM
Through bore size Fit Optic rotary joint Overall diameter 56mm(2.2")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP68 optional
Materials Lead Free, ROHS Certified CE,FCC







Applications:



• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking



Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Pneumatic electric rotary union series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.high speed slip ring series

11.thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.explosion proof slip ring series

16.mercury slip ring serials


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
