|Passage Size:||3 Mm||Tube Size:||4-6mm|
|Passage Media:||Comprass Air||Circuits:||6 -24|
|Speed:||500RPM||Lead Wire:||UL Teflon® Awg26,|
|Housing Material:||Aluminium Alloy||Contact Material:||Precious Metal:Gold-Gold|
|Outer Size:||60mm||Lead Length:||300mm|

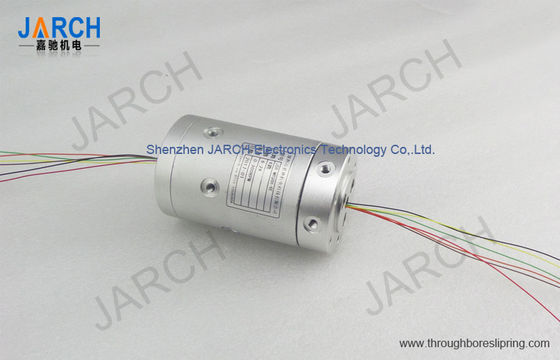

6- passage pneumatic hybrid slip rings with 6-24 electrical circuits signal 2A, 500 rpm
6 passages pneumatic
Housing material:Aluminium Alloy
6-24 electrical circuits signal available
|Model Number:||JSR-MQR6H-xE||Passage Size(mm):||3mm|
|Passage Media:||Compress air||Electrical Circuits:||
|Speed(rpm):||500RPM||Tube Size||4mm , 6mm|
|Packaging Details:||Standard Export carton Package|
Delivery time for Sample 3 days / Delivery time for Order depends on quantity
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JSR-MQR Series Pneumatic Electrical Rotary Union Support 6-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-MQR6H-xE provide 6 passage 3mm compressed air, combine 6-24 circiuts Power and singnal or Ethernet electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices
· Small size
· Rapid delivery
The length of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.
|Max speed||500rpm||Overall diameter||60mm|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Precious Metal:Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22,Awg16|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54|
|Materials||Lead Free, ROHS||Certified||CE,FCC,UL,ROHS|
