Payment & Shipping Terms:
|Lead Length:||300mm||Passage Media:||Compressed Air|
|Passage Size:||8mm||Tube Size:||8-10mm|

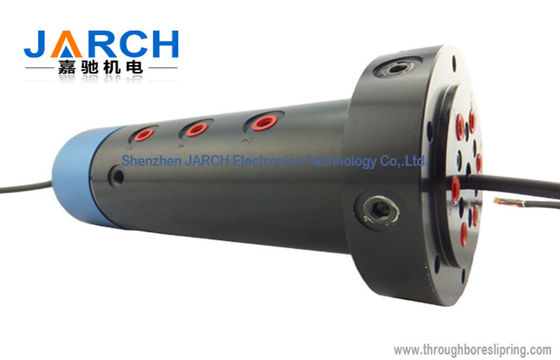

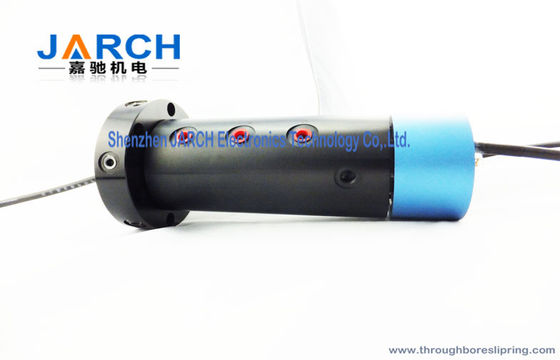

Industrial High Pressure Hydraulic Swivel Joint 4 Passage With 2-36 Circuits , UL ROHS Listed
360 degree transmit air, fluid and electricity
OEM customized is available.
can transmit water, hot water, coolant, steam etc. media.
solid or hollow is available
Rugged anodized aluminum construction
|Model Number:||JSR-HY025-16E-6G||Passage Size(mm):||8mm|
|Passage Media:||Compressed air||Electrical Circuits:||2-36|
|Packaging Details:||Standard Export carton Package|
Delivery time for Sample 3 days /Delivery time for Order depends on quantity
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY038-16E-6G provide 6 passage 6 ~ 8mm compressed air passage, combine 2 ~ 36 circiuts 2A/15A electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices
· Small size
· Rapid delivery
The length of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.
|Rings||2 ~ 24||Current||Signal(2A) or 5A /15A|
|Voltage||mV~240 VDC/VAC||Max speed||30RPM|
|Through bore size||None||Overall diameter||78mm|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Precious Metal:Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22,Awg16|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54|
|Materials||Lead Free, ROHS||Certified||CE,FCC|
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
Jarch main products:
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
|Q1: Are you a factory or a trading company?|
|A: We are a professional manufactory with High-level R & D team.|
|Q2: How many types of the slip rings do you have?|
|A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
|Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.|
|A: Yes, we can supply mixed signals slip rings as your request.|
|Q4: what's the working life of your slip rings.|
|A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
|Q5: Do you supply OEM and ODM ?|
|A: Yes, we supply OEM and ODM.|
|Q6: What technical data should be provided for our customized slip ring model.|
A: If you want to costomize the special slip ring model, you need provide details as below:
d.channels(the No. of single wire besides cable)
f.the signal type and related
g.operating temperature h.IP(sealing requirements)
|Q7: How long is your production lead time?|
|A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
|Q8: What's your delivery port?|
|A: Our delivery port is Shenzhen|
|Q9: How do you delivery our goods?|
|A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
|If you have any other question, pls contac us without any hesitation.|
