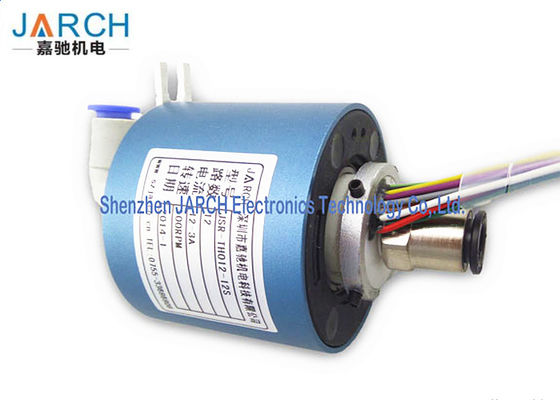

1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size



Feature:



1.ID/OD:6/56MM

2.2-10 Circuits,5A/15A current

3.1 Passage with 8mm tube

4.Max speed:300rpm

5.Fully compatible with both analog and TTL control level signals



Quick Details:

Model Number: JSR-HY012-10E-1G Inner Size(mm): 6mm
Outer Size: 56mm Circuits: 2~26
Volt AC/DC(V): mV~380Vac/Vdc Current(A):  2A/5A/15A
Speed(rpm): 300RPM Tube Size 8mm



1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size 0

Description:

Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.


JARCH HY Series Pneumatic  Electrical Rotary Union  Support 2-12 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.


The JSR-HY012-10E-1G provide 1 passage rotary union combine 10 circiuts 2A signal or 15A Power electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.



Benefits:

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices

· Small size
· Rapid delivery




Dimensions:
 1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size 1

Model Explanation:
 1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size 2

Electrical Specifications:


Rings 2~36 Current Signal(2A) or 5A/10A/15A
Voltage mV~380 VDC/VAC Max speed 300RPM
Through bore size 6mm Overall diameter 56mm
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Precious Metal:Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22,Awg16
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54 (IP68 Optional)
Materials Lead Free, ROHS Certified CE,FCC


Applications:


• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment




Installation Instructions:

Flange mounted:

1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size 3
