Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm

Good quality Capsule Slip Ring for sales
Good quality Capsule Slip Ring for sales
We have done over 5 years partnership with JARCH. Its Quality control and after sales Service is so nice. I'll go on jobs to JARCH for sure.

—— Mr. Jürgen

I really recommend, a great team and good quality. Very good. I will buy again.

—— Mr.David

good seller, fast delivery, the quality is excellent, thank you!

—— Mr.Rapeepong

I'm Online Chat Now

Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm

China Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm supplier

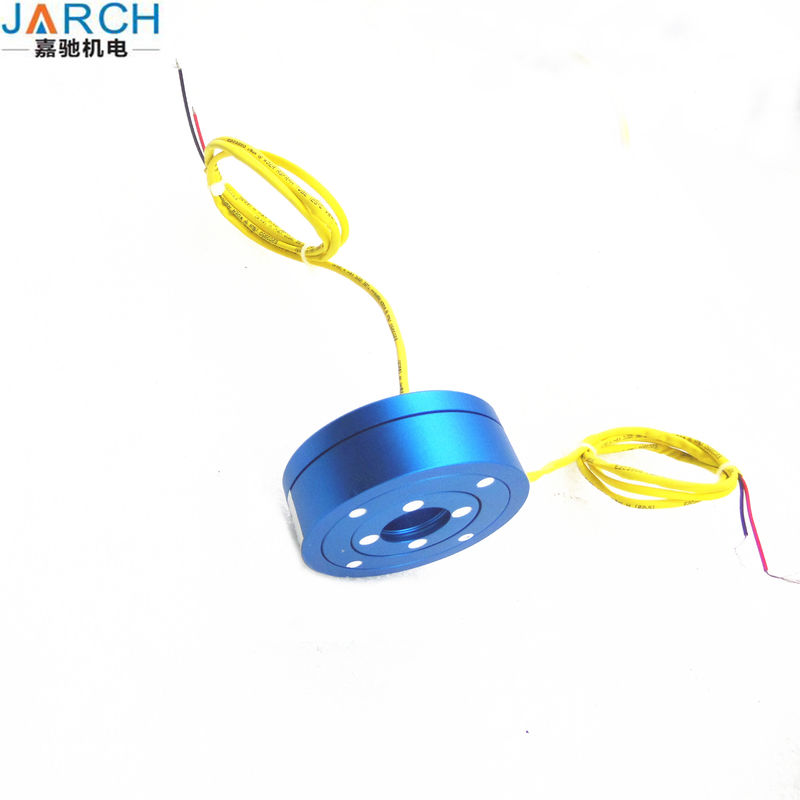

Large Image :  Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-PS070

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 100 - 300 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Contact Now
Detailed Product Description
Inner Size: 70mm Lead Length: 250mm
Lead Wire: 22# Silver Plated Copper Thickness: 20mm
Contact Material: Precious Metal:Gold-Gold Voltage: 240Vac/240Vdc
Current Rating: 2A-10A/ring Circuits: 2-24
Speed: 250RPM

Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery



Feature:

a.Thickness:20mm

b.Gold -gold contacts

c.Could support bore size from 12.7 to 120mm

d.Standard, off-the-shelf

e.Support power,signals transmitting



Quick Details:



Model Number: JSR-PS070 Current Rating: 2A ~ 10A/Ring
Inner Size: 70mm Circuits: 2 ~ 24
Volt AC/DC(V): mV~240Vac/Vdc Contact Material:  Gold-Gold contacts
Speed(rpm): 250RPM Thickness:  20mm

Packaging & Delivery:

Packaging Details: Standard Export carton Package
Delivery Details:

Divery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;


PS070

Hole size: 70mm , Thickness:38mm

2,3,4,6,8,10 circuit version

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. The PS070, with 70mm thickness and hol size 70mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates


The PS070, with 2 ~ 24 circiuts and compact 40mm body thickness, which we call our disk slip ring .



Benefits:


  • Longer lead lengths availableI
  • Power and signal combinations
  • Rotor and stator lead exits
  • gold alloy brush,Gold plated rings
  • IP65 are optional
  • More thickness available



Dimensions:
Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm

Model Explanation:

Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm


Specifications:


Operating Speed 0-200 rpm
Number of Circuits 2 ~ 10
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°Cto +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin


Applications:

  • Filling equipment
  • Electrical test equipment.
  • Medical equipment.
  • Rotary table
  • Robotics
  • Laboratory equipment
  • Manufacturing and process control equipment



Installation Instructions:

Flange mounted:

Lead Length 9.843inch Fiber brush Pancake Slip Ring For Industrial Machinery Inner size:70mm


Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
