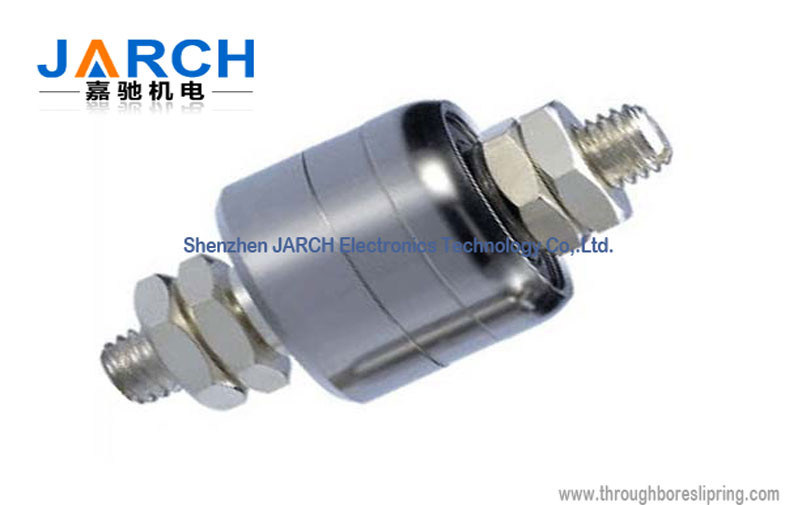

    Mercury High Speed Slip Ring rotary electrical joint Max Speed:1200RPM

    Product Details:

    Place of Origin: Shenzhen , China
    Brand Name: JARCH
    Certification: CE,FCC,ROHS
    Model Number: JSR-MS-A1H25S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: US $ 100 - 200 / Piece
    Packaging Details: Gift box or custom packing
    Delivery Time: 5-10 days
    Payment Terms: Ex-works,T/T, Western Union, MoneyGram
    Supply Ability: 500pcs/week
    Get Best Price Contact Now

    Detail Information

    Outer Size: 31.6mm Poles: 1
    Current: 250A Voltage: 250Vac/Vdc
    Max Speed: 1200RPM MHZ: 200
    Contact Resistance: <1mΩ Insulation Resistance: >25MΩ
    High Light:

    ethernet slip ring

    ,

    miniature slip ring

    Product Description

    Mercury High Speed Slip Ring rotary electrical joint Max Speed:1200RPM

    Mercury High Speed Slip Ring 1200RPM rotary electrical joint



    Key feature:

    1.Anti-jamming ,very low cost

    2.No maintenance and better reliability than traditional sling rings

    3.High speed, low electric noise

    4.Outer size:31.6mm

    5.Very low contact resistance



    Quick Details:



    Model Number: JSR-MS-A1H25PS Outer Size(mm): 31.6mm
    Speed(rpm): 0~1200RPM Poles: 1
    Volt AC/DC(V): mV~250Vac/Vdc Current(A):  250A


    Packaging & Delivery:



    Packaging Details: Standard Export carton Package
    Delivery Details:

    Delivery time:7 days after got the payment

    Shipping:BY DHL, FedEx, UPS or TNT......


    Description:

    Mercury slip ring also could be called mercury conductive rotary connector or mercury conductive slip ring. Shortly speaking, mercury rotary joint is a kind of industrial parts which use fluid medium to transmit signal or power. The biggest difference compared with traditional carbon brush slip ring is that it is mainly for liquid silver conductive medium, also the rotating part and fixed part combined together. Under the operation, it do not need to use carbon brush for conductive transmission, but directly use mercury to transfer power. At the another hand, there is a slip ring called non-mercury rotary joint, which uses a special gallium alloy liquid metal to pass power without mercury. This non-mercury type slip ring can meet the demand who require ROHS certification in some specific equipment. That is why, Jarch launched this new non-mercury slip ring into market soon after around 2 years hard working by technical engineers. Both of these rotary connector has the main feature of strong stability, high precious signal and very low noise. Meanwhile, compared with the traditional mechanical slip rings, both rotary connector are smaller size, easier installation and free maintenance, etc.

    Main features:
    High work speed & big current
    Less than 1mΩ contact resistance, no noise
    Compact structure, easy installation and smooth operation
    Free maintenance and more durable than traditional slip ring
    Apply to any rotating device to transmit various signal and power
    Non-mercury slip ring is optional ( Conform to CE, RoHs certification )
    Stainless steel and aluminum alloy housing is optional
    Contact pin and lead wire installation is optional

    Application:
    Rotating table, rotating camera and rotary lamp box
    Cable wheel, winding machine
    Resistors cutting machine
    Robot arm
    Wind turbine generator
    Medical equipment, spinning LED sign board
    Manufacturing and handling control machine


    Notice for using non-mercury slip ring:
    The minimum temperature for liquid metal 46L
    Soild temperateure: +7.6℃

    There is a “super cool” effect, when a slip ring contain liquid metal 46L, put in the room temperature 0℃, the liquid metal will not be solid immediately, there will have a 2-4 days range the liquid metal 46L will keep in liquid status, just like the river water still run in the 0℃.

    The liquid metal slip rings are recommended to be used within 3 months after shipping. If the slip ring has rotation not smooth condition after 3 months storage in the room temperature +8℃, please put it in the warm room ( over 50℃) to recover the liquid metal status.

    The liquid metal is not so sticky like mercury which can be sticky (touched) on the silver plated conductor surface. The liquid metal slip rings’ vibration resistance ability is much less than mercury types. Any light vibration, impact, shock will make the liquid metal to move out from the main conductor chamber to another conductor’s room. That will make short circuit easily.

    Just feel free to contact with Jarch to get more details that you required, the sales engineer could provide you the best service in time.


    Dimensions:

    Mercury High Speed Slip Ring rotary electrical joint Max Speed:1200RPM 0





    Specifications



    Model Poles Current (A) AC/DC (V) MHZ Contact Resistance Max rpm Max/Min ℃ (x10-3Nm) Insulation Resistance
    A1H25S 1 250A 250 200 <1mΩ 1200 60/-29 35 >25MΩ





    Installation Instructions



    Mercury High Speed Slip Ring rotary electrical joint Max Speed:1200RPM 1









    Jarch main products:



    1. Fiber optic rotary joint series

    2. Through bore slip ring series

    3. Electro optical slip ring series

    4. Hybrid slip ring series

    5. Pneumatic rotary joint series

    6. Hydraulic rotary union series

    7. Capsule slip ring series

    8. Pancake slip ring series

    9. High current slip ring seriels

    10.High speed slip ring series

    11.Thermocouple slip ring series

    12.Miniature slip ring series

    13.Wind turbine slip ring series

    14.Ethernet slip ring series

    15.Explosion proof slip ring series

    16.Mercury slip ring series


    Why to choose JARCH slip ring?

    JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
    With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
    We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

    Can't find the right slip rings solution?


    At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



    FAQ



    Q1: Are you a factory or a trading company?
    A: We are a professional manufactory with High-level R & D team.
    Q2: How many types of the slip rings do you have?
    A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
    miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
    disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
    Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
    A: Yes, we can supply mixed signals slip rings as your request.
    Q4: what's the working life of your slip rings.
    A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
    We also can supply much higher revolutions as your special requirement.
    Q5: Do you supply OEM and ODM ?
    A: Yes, we supply OEM and ODM.
    Q6: What technical data should be provided for our customized slip ring model.

    A: If you want to costomize the special slip ring model, you need provide details as below:

    a.operatring speed(RPM)
    b.the type of installation

    c.outline size

    d.channels(the No. of single wire besides cable)
    e.rated voltage & current for power rings and signal rings

    f.the signal type and related
    parameters(very important)

    g.operating temperature h.IP(sealing requirements)

    Q7: How long is your production lead time?
    A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
    15 to 40 days for complex customized porducts.
    Q8: What's your delivery port?
    A: Our delivery port is Shenzhen
    Q9: How do you delivery our goods?
    A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
    It can be negotiated before delivering.
