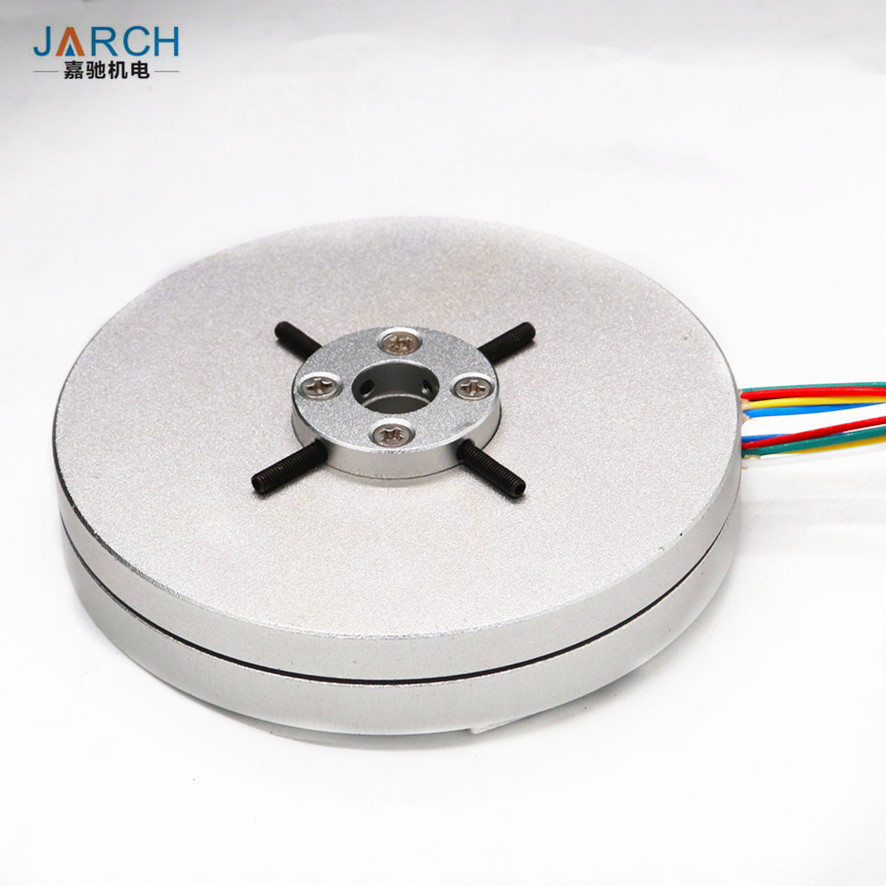

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM

Product Details:

Place of Origin: Guangdong,CN
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-PS

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: US$99-300/PIECE
Packaging Details: Standard Export Package
Delivery Time: 5-8 WORKING DAYS
Payment Terms: T/T,PAYPAL
Supply Ability: 1000 PICES/ PER WEEK
Get Best Price Contact Now

Detail Information

ID: 3-1000mm OD: 10-1500mm
Contact Material: Precious Metal:Gold-Gold Housing Material: Aluminium Alloy
Protection Level: IP54/IP68 Max Speed: 250~500RPM
Circuits: 2~72 Current(A): 2A/5A/15A/20A/30A
High Light:

IP66 Pancake Slip Ring

,

Aluminium Alloy Pancake Slip Ring

,

500RPM Flat Slip Ring

Product Description

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM

PCB ROTARY CONTACT pancake slip rings connector IP68 SLIP RING ip65 10mm bore rotary joint

Quick Details
Place of Origin:
Guangdong, China
Brand Name:
JARCH
Model Number:
JSR-PS series
Type:
pancake slip ring, Electrical Contact
Contact Material:
Precious Metal:Gold-Gold
Bore size:
3-70mm
Circuits:
2- 24Circuits
Current:
10A/5A/2A
Application:
robotics, packaging machines
Lead Wire:
22# silver plated copper
Usage:
Industry,robot
Keyword:
Slip Ring Flanges
Product name:
through bore slip rings 10~100mm flat slip ring pancake type slipring

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X30X30 cm
Single gross weight:
5.000 kg
Package Type
Gift box or custom packing, through bore slip rings 10~100mm flat slip ring pancake type slipring contactR pancake slip rings connector IP68 SLIP RING ip65 10mm bore rotary join
t





Through Bore Slip Ring Product Details

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 0

Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 1

Custom slip rings are also available—Contact us to discuss your custom requirements.

Size Body Diameter Bore Diameter Signal Count
TH03 17 mm 3 mm 2-8 circuits
TH05 22 mm 4.5 mm 2-8 circuits
TH12 54 mm 12.7 mm 2-24 circuits
TH25 78 mm 25.4 mm 2-48 circuits
TH38 99 mm 38.1 mm 2-48 circuits
TH50 120 mm 50 mm 2-72 circuits
TH60 135 mm 60 mm 2-96 circuits
TH70 155 mm 70 mm 2-96 circuits
TH80 180 mm 80 mm 2-96 circuits
TH90 190 mm 90 mm 2-96 circuits
TH100 203 mm 100 mm 2-96 circuits
TH300 *** *** ***
TH500 *** *** ***


IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 2
IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 3
IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 4

JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.



Features & Benefits of TH Series Through Bore Slip Rings

  • Multiple sizes available
  • Modular design
  • Durable construction for long working life
  • Maintenance free operation
  • Easily customizable—Contact us for custom slip ring units
  • CE and RoHS Compliant

Common Hollow Shaft Slip Ring Applications

  • Wind generator slip rings
  • Rotary tables
  • Packaging machinery
  • Bottling machinery
  • Cable reel through bore slip rings
  • Robotic and automated equipment
  • Machinery turrets and tool changers
  • Medical equipment
  • Downhole inspection equipment
  • Pan and tilt heads

Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.

IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 5



Product Effects
Small generator slip ring Wind power equipment Surveillance cameras Encoder slip ring Mechanical arm Beer production equipment
Rotating light box Milk production equipment Rotary silver plating production line Helicopter Rotating camera Radar communication
Rolling machine Flight equipment Hot roller Tank rotating turret Molding machine Revolving door
Automatic winding machine Rides LED advertising light Production line High speed ball Shadowless lamp



IP65 IP66 Pancake Slip Ring Rotary Joint Aluminium Alloy 500RPM 6
