SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

Product Details:

Place of Origin: Guangdong,CN
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-TH122-8P10-24S

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: US$99-600/PIECE
Packaging Details: Standard Export Package
Delivery Time: 5-8 WORKING DAYS
Payment Terms: T/T,PAYPAL
Supply Ability: 1000 PICES/ PER WEEK
Get Best Price Contact Now

Detail Information

ID: 122MM Contact Material: Precious Metal:Gold-Gold
Housing Material: S304/316 Max Speed: 100RPM
Circuits: 8 Current(A): 10A
IP Level: IP66,IP68 Used For: Rotating Platform Military Equipments
High Light:

122mm Through Hole Slip Ring

,

100RPM Through Hole Slip Ring

,

IP68 Wind Generator Slip Ring

Product Description

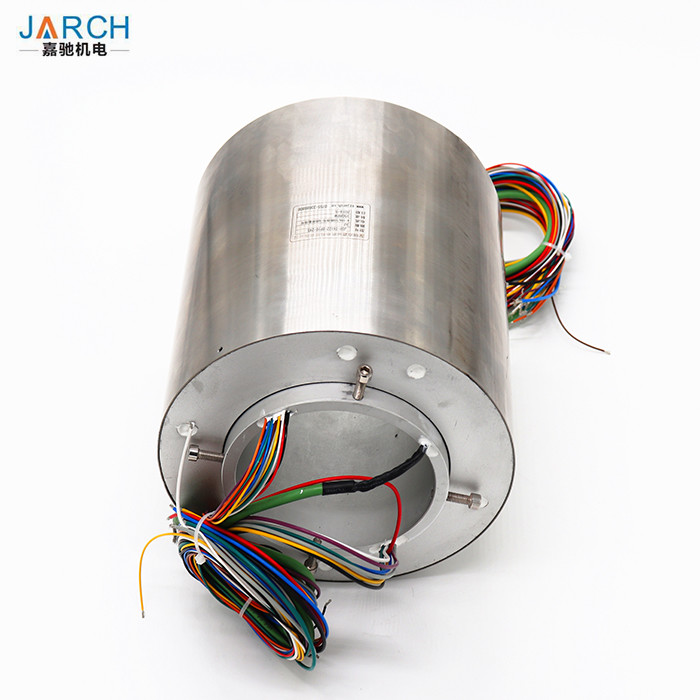

SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

Rotary Platform Military Equipment Through Hole Slip Ring Stainless Steel House Diameter 122mm Wind Generator Slip Ring

High Light:

 122mm through bore electrical slip ring



JARCH slip rings are through-hole slip rings (the center hole can pass through the driveshaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas, and liquid and other joints). Using an advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.



Electrical slip ring Features & Advantages



  • Transmit analog and digital signal
  • Compatible with data bus protocols
  • Easy to install
  • Maintenance-free
  • Long service life
  • Rapid delivery
  • Custom solution

Electrical slip ring Specification



Circuits 8
Current Rating 10A,24 signals
Voltage 240 V AC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 122mm
Working Speed 0~300 RPM
Contact Precious metal
Housing S304/316
Wire Length Stator:300mm; Rotor:300mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP68/IP66



Electrical slip ring Application

  • Radar antenna
  • Rotary Platform
  • Engineering machine
  • Packaging Machine
  • Test Equipment
  •

Electrical slip ring Product Display

SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring 0



Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufactures like housing or other mounting-related mechanical parts.

Through Bore Slip Ring Product Details

Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.

Custom slip rings are also available—Contact us to discuss your custom requirements.

Size Body Diameter Bore Diameter Signal Count
TH03 17 mm 3 mm 2-8 circuits
TH05 22 mm 4.5 mm 2-8 circuits
TH12 54 mm 12.7 mm 2-24 circuits
TH25 78 mm 25.4 mm 2-48 circuits
TH38 99 mm 38.1 mm 2-48 circuits
TH50 120 mm 50 mm 2-72 circuits
TH60 135 mm 60 mm 2-96 circuits
TH70 155 mm 70 mm 2-96 circuits
TH80 180 mm 80 mm 2-96 circuits
TH90 190 mm 90 mm 2-96 circuits
TH100 203 mm 100 mm 2-96 circuits
TH300 *** *** ***
TH500 *** *** ***


SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring 1
SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring 2
SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring 3

JARCH TH Series Through Bore Slip Rings

Through bore size 3mm to 900mm

Circuit number 2-350

Operation speed:up to 250rpm, 800rpm, 1500rpm

Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.

Power circuit and Ethernet signal circuit can be integrated to one unit slip ring

ABS plastic housing and AL housing are optional

Flexible, color-coded, silver-plated, Teflon® insulated lead wires

Contact material silver to silver coating

Standard wire leads length is 500mm

Standard temperature is -20°C to +80°C

Insulation strength 500V AC@50HZ 60S

Insulation resistant 500MΩ 500VDC

Long life cycles up to 80 million cycles

Protection grade IP 51, IP54, IP 65

Ethernet circuits can transmission 100Mbps, 1Giga data.


High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.



Features & Benefits of TH Series Through Bore Slip Rings

  • Multiple sizes available
  • Modular design
  • Durable construction for long working life
  • Maintenance free operation
  • Easily customizable—Contact us for custom slip ring units
  • CE and RoHS Compliant

Common Hollow Shaft Slip Ring Applications

  • Wind generator slip rings
  • Rotary tables
  • Packaging machinery
  • Bottling machinery
  • Cable reel through bore slip rings
  • Robotic and automated equipment
  • Machinery turrets and tool changers
  • Medical equipment
  • Downhole inspection equipment
  • Pan and tilt heads
  • Typical Applications:

    Industrial machinery-machining center, rotary index table

    Heavy equipment turrets, cable reels, test equipment

    Packaging machines, palletizing machines, magnetic clutch

    Process equipment

    Rotary sensors, emergency lighting, robotics

    Medical equipment

    radar system

    labeling

Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
