• Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring
  • Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring
  • Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring
Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring

Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-PS050

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US $ 100 - 300 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Inner Size: 50mm Lead Length: 250mm
Contact Material: Precious Metal:Gold-Gold Lead Wire: 22# Silver Plated Copper
Voltage: 240Vac/240Vdc Current Rating: 10A Per Circuit
Thickness: 20mm Insulation Resistance: 100 MΩ @ 500 VDC
High Light:

50mm inner electrical slip rings

,

ip65 through hole slip ring

Product Description

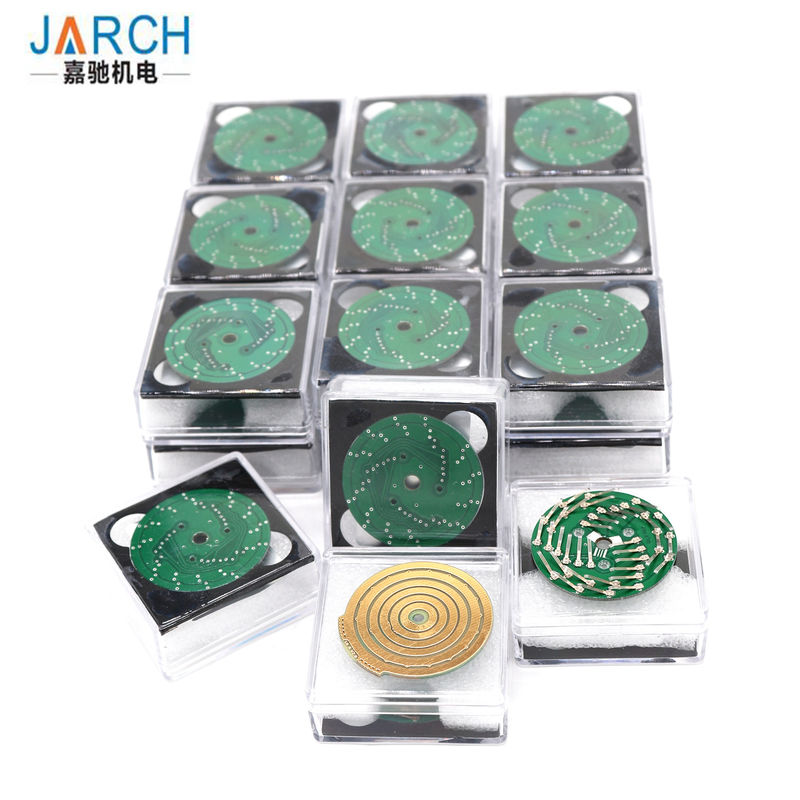

Face type slip ring, pancake slip ring, flat slip ring, pcb slipring

Pancake slip rings has been designed primarily for the transmission of signals, but has now been developed to accommodate power transmission also. Fine brass rings are used for signals and can be plated with silver, gold or rhodium where low contact resistance and low noise levels are required. The best results are obtained when these precious metal surfaces are used in conjunction with silver-graphite brushes. These units are suitable for slow speed only when fitted with brass rings.

Packaging & Delivery:

Packaging Details: Standard Export carton Package
Delivery Detail:

Delivery time: 15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......


Face type slip ring, pancake slip ring, flat slip ring, pcb slipring
Description:

Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;


PS050

Hole size:50mm , Thickness:20mm

2,3,4,6,8,10 circuit version

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. The SNK012, with 20mm thickness and hol size 12.7mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates


The PS012, with 2 ~ 10 circiuts and compact 20mm body thickness, which we call our disk slip ring .



Benefits:


  • Longer lead lengths availableI
  • Power and signal combinations
  • Rotor and stator lead exits
  • gold alloy brush,Gold plated rings
  • IP65 are optional
  • More thickness available


Face type slip ring, pancake slip ring, flat slip ring, pcb slipring

Model Explanation:

Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring 0


Specifications:


Operating Speed 0-200 rpm
Number of Circuits 2 ~ 10
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°Cto +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin


Applications:

  • Filling equipment
  • Electrical test equipment.
  • Medical equipment.
  • Rotary table
  • Robotics
  • Laboratory equipment
  • Manufacturing and process control equipment



Installation Instructions:

Flange mounted:

Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring 1



Contact Us
Low Noise 10A Per Circuit 250mm Lead Pancake Slip Ring 2

Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
