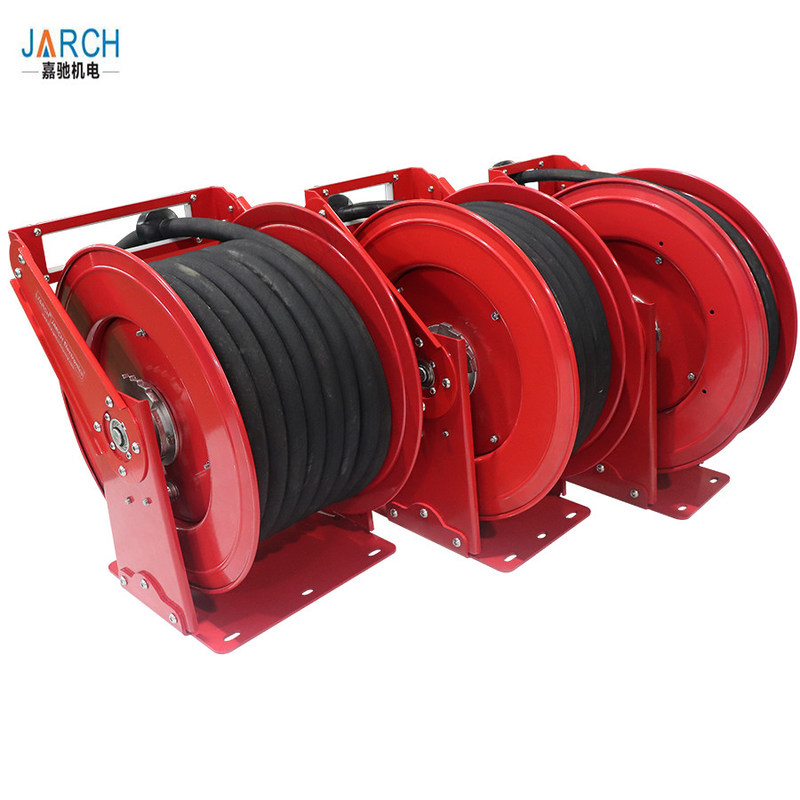

Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4"

Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4"
Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4"

Large Image :  Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4"

Product Details:

Place of Origin: China
Brand Name: JARCH
Certification: CE FCC
Model Number: JSR-83050 OMP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD$100-500/Piece
Packaging Details: Standard Export Paper carton or custom packing
Delivery Time: 7 working days
Payment Terms: D/P, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500Piece/week
Detailed Product Description
Type: 1250 PSI 3/4" Dual Pedestal Fuel Spring Retractable Reels Application: Fuel Statation/Mini Fuel Dispenser Truck
Diameter: 3/4" Hose Length: 50 Ft.
Drive Type: Spring Driven Hose Included: Yes
Weight: 99lbs Max Pressure: 1250PSI
High Light:

extension cord reel

,

extension cable reel

JARCH Medium Pressure Oil Hose Reels 1250 PSI 3/4" Dual Pedestal Fuel Spring Retractable Reels



Product Description

3/4 in. x 50 ft. Heavy Duty Hose Reel

JARCH's Series 80000 and D80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications. Series D80000 reels are also supplied with JARCH's ball-bearing style swivel.

Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" 0


Weight 98 lbs
Series 80000
Hose I.D. 3/4"
Hose O.D. 1.188"
Hose Length 50'
Pressure 1250 psi
Hose End 3/4" NPT(M)
Inlet 3/4" NPT(F)
Reel Outlet 3/4" NPT(F)
Hose Included Yes
Max Temperature 210 °F

JARCH Medium Pressure Oil Hose Reels 1250 PSI 3/4" Dual Pedestal Fuel Spring Retractable Reels

10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel 10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel
We powder coat parts individually before installation for superior coverage and better protection against corrosion. You won't have to worry about your spring losing its strength or breaking from normal usage.

10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel
Arm adjusts to 3 positions for your need,wall-mounted, hang, grounding...



JARCH Medium Pressure Oil Hose Reels 1250 PSI 3/4" Dual Pedestal Fuel Spring Retractable Reels



Features



***Full flow stress-free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.



***Reinforced steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.



***Quiet speed latch - The latch cam is designed for reliable quiet operation.



***Long life drive spring - The unitized cast aluminum fluid path with built-in declutching arbor virtually eliminates the possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.



Outline Drawing

Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" 4



Product Uses



Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" 5



JARCH Main Product:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro-optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring serials

10.High-speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion-proof slip ring series

16.Mercury slip ring series






Packaging & Shipping

Packaging Details: Standard Export carton Package
Delivery Details: Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......

Medium Pressure Oil Hose Reels , Dual Pedestal Fuel Spring Retractable Reels 1250 PSI 3/4" 6









100 ft. Reinforced steel Heavy Duty Dual Pedestal Hose Reel Long life drive spring Grease Cable Reels

1.How do I increase or reduce spring tension?

100 ft. Reinforced steel Heavy Duty Dual Pedestal Hose Reel Long life drive spring Grease Cable Reels

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand-feed hose back up through roller bracket assembly* until the loop is large enough to slip over a sheave. Add two or three wraps until the desired tension is achieved. Do not exceed spring capacity.



To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

*For Series D9000 reels, you will have to remove the bumper and control handle then feed the end of the hose through roller bracket assembly to add or remove wraps of hose from the reel drum.



2.How do I install a new drive spring and set pre-turns?



We have several different types of spring-driven reels. Each requires a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

For how many wraps of "pre-tension" to put on the reel, please reference the chart below.

Spring Number Wraps Required
S400030 18
S404230 13
S504240 19
S505740 13
S503755 21
S600050 21
S600625 13
S600620 19
S504230 17
602718-80 33
602720-100 27
602720-70 25
602721-80 21
602733 33





3.Can my spring-driven reel be made "constant tension"?



While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.



4.Material leaking from swivel



O-ring was worn out or wrong O-ring for the material being handled
Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.



The swivel may be loose or not enough pipe thread sealant on shaft threads
Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.
