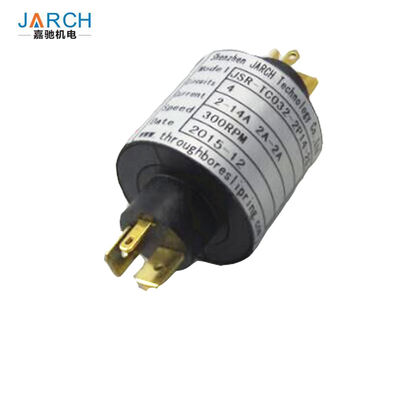

Precious Metal Contact Pin Electrical Slip Ring 31.6mm Outer Size For Environmental
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US $ 50 - 100 / Piece |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works,T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Outer Size: | 31.6mm | Poles: | 3 |
|---|---|---|---|
| Current: | 30A | Voltage: | 250Vac/Vdc |
| MHZ: | 200 | Insulation Resistance: | >25MΩ |
| Contact Resistance: | <1mΩ | Speed: | 1200RPM |
| High Light: | ethernet slip ring,mercury slip rings |
||
Product Description
Precious metal contact pin mercury rotary joint brushless mercury slipring for environmental
Quick Details:
| Model Number: | JSR-MS | Outer Size(mm): | 31.6mm |
| Speed(rpm): | 0~1200RPM | Poles: | 3 |
| Volt AC/DC(V): | mV~250Vac/Vdc | Current(A): | 30A |
Description:
mercury slipring shell material is stainless steel,A2H mercury slipring use on any rotating object to transfer tiny voltage ,digital audio ,Gigabit Ethernet,HF signal, digital/analog video,sensor signal and so on.
We design,develop and produce fiber composite (FORJ), electrical liquid mixture, high-frequency combinations, explosion-proof slip rings, waveguide combination of slip rings, etc. and we can provide the electrical contact devices in varieties of working conditions, from the underwater environment to the high altitudes, from the alpine zone to the high temperature environment, and even for the explosive condition. At present, our products are applied in the fields of security, industrial automation, military, environmental protection and so on
Precious metal contact pin mercury rotary joint brushless mercury slipring for environmental
Benefits:
- Unique signal handling performance with minimal electrical circuit noise
- Very low electric noise
- Anti-jamming ,very low cost
- Very low contact resistance (Less than 1mΩ)
- No maintenance and better reliability than traditional sling rings
- Suitable for signal and power transfer of rotating devices or instruments
Dimensions:
Specifications
| Model | Poles | Current (A) | AC/DC (V) | MHZ | Contact Resistance | Max rpm | Max/Min ℃ | (x10-3Nm) | Insulation Resistance |
| A3H | 3 | 30A | 250 | 200 | <1mΩ | 1200 | 60/-30 | 400 | >25MΩ |
Notice
1 Use no more than 60 temperature.
2 The vertical direction when installed, to keep U P upward, preservation needs to keep up also.
3 Not for rotating connector itself or copper terminal welding heat.
4 Dedicated terminals should not be reused many times.
5 Revolver such as vibrations will reduce service life.
6 This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but
never can withstand weight.
Applications:
• Index table for signal and power connection
• Resistors cutting machine
• Package machine
• Heating roller
• Plating equipment
• Filling equipment
Installation Instructions
JARCH main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Retractable Hose Reel
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
17. Slip Ring Carbon Brush
18.Collector Ring Assembly
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
FAQ
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. |
||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. | ||||||||||
| Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
|
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) c.outline size d.channels(the No. of single wire besides cable) f.the signal type and related g.operating temperature h.IP(sealing requirements) |
||||||||||
| Q7: How long is your production lead time? | ||||||||||
| A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. |
||||||||||
| Q8: What's your delivery port? | ||||||||||
| A: Our delivery port is Shenzhen | ||||||||||
| Q9: How do you delivery our goods? | ||||||||||
| A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering. |
||||||||||
| Remark: | ||||||||||
| If you have any other question, pls contac us without any hesitation. |
