Detailed Product Description
Material: Stainless Steel Rotor Material: Ss304
Medium: Water,gas,oil Max Pressure: 7Mpa
Max Speed: 400RPM Size: 3/8''-4''
Max Temperature: 120℃ Technics: Casting
Type: Coupling Product Name: Ss304 Multiple Passages Flange Connection Hydraulic Rotary Union

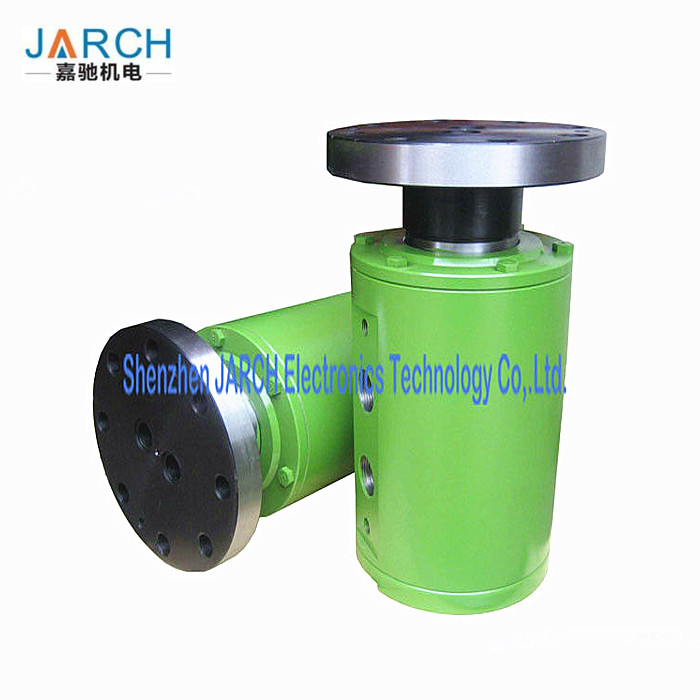

JARCH Ss304 Stainless Steel with round Head Code Multiple Passages Flange connection Hydraulic Rotary Union



Product Description


Multiple Passages Hydraulic Rotary Union Stainless Steel with round Head Code



Feature:



****Multiple passage are designed to be increased mounting flexibility.

****Ideal for high pressure and low speed hydraulic oil and air JARCH

****Long service life with easy field repair and maintenance JARCH

****The housing available in aluminum, stainles steel or copper. JARCH

****Custom modifications to our stock products significantly reducing lead times and costs

Ss304 Stainless Steel with round Head Code Multiple Passages Flange connection Hydraulic Rotary Union

Electrical Specifications:



Material: Stainless Steel Technics: Casting Type: Coupling
Place of Origin: Shenzhen, China Model Number: JSR-JT-K Brand Name: JARCH
Connection: Flange Shape: round Head Code: round
SIZE: 3/8'' TO 4'' Medium: water,oil,air Rotor material: ss304
Max speed: 400RPM Max pressure: 7Mpa Max temperature: 120













A rotary joint, also referred to as a rotary joint or rotating joint, provides a mechanical seal between a stationary supply pipe and a rotating drum or cylinder to permit the flow of heat transfer media into and/or out of the rotating roll. Heat transfer media typically used with rotary joints and rotating joints includesteam,water,hermal oil,coolant,airhydraulic oil.

G series rotary joint consists of two large precision bearings and seals principles of design using smooth, sealed bearing and wear to a minimum, extend the service life.



JARCH’s high-speed rotary unions are capable of containing very high pressure while rotating at high speeds. The materials used in the making of the high-speed rotary unions are aluminum, carbon steel, and, upon request, stainless steel, which provides outstanding corrosive resistance. We offer a variety of sizes in both American and Metric. We specialize in custom design that provides our customers with the exact specifications that they require. Speak to our knowledgeable and personable sales staff and they will be happy to assist in the creation of the prototype that will meet your needs.



Typical industrial uses for JARCH’s high-speed rotary unions include steam dryers, rubber mills, extruders, calendar rolls, air clutches, laminators, press rolls, manufacturing of machines, hydraulics, Machining Centers and related applications.





Dimensions:

Ss304 Stainless Steel with round Head Code Multiple Passages Flange connection Hydraulic Rotary Union

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department

Model Parter No. I K A B C M D L E F G V J W H Y Q n-X n-X' weight(kg) 10Mpa Working Speed
M01 M01015 1 x G1/2" 40 126 78 13 / 2-M8 58 5 40 83.5 / 10 60 80 / 95 4—9 4-M8 1.8 190
M01020 1 x G3/4" 45 133 83 16 2-M8 59 5 40 88 12 65 85 102 4—9 4-M8 2.3 160
M01025 1 x G1" 45 143 90 22 2-M12 64 5 40 95 12 65 85 110 4—9 4-M8 2.6 150
M01032 1 x G1-1/4" 55 162 108 30 2-M12 70 6 46 105 14 80 110 126 4—9 4-M8 4.5 110




Benefits:

1. High-temperature,high-pressure resistant rotating pipe coupling

2. Rugged-construction unions suitable for high pressure, high temperature thermic oil, steam

3. The seal is imported from Germany, which guarantee the excellent performance of our rotary union.

4. The design of detachable baseplate structure is convenient for the conversion between single and multi-passsages

5. The use of graphite pallet balance the compensation of spring, hence it avoids the spring being corroded and prolongs the service life.

6. Ideal for thermal oil and for considerably higher pressures, temperatures

7. Hosing made of ductile cast iron and cover&rotor made of chrome steel

8. Have high temperature resistant spring



Installation Instructions--Flange mounted:

Ss304 Stainless Steel with round Head Code Multiple Passages Flange connection Hydraulic Rotary Union



Applications:

  • • Paper Machinery

    • steel, corrugating, textiles,

    • Dyeing, Rubber, Plastics, Chemical,Machine tool
