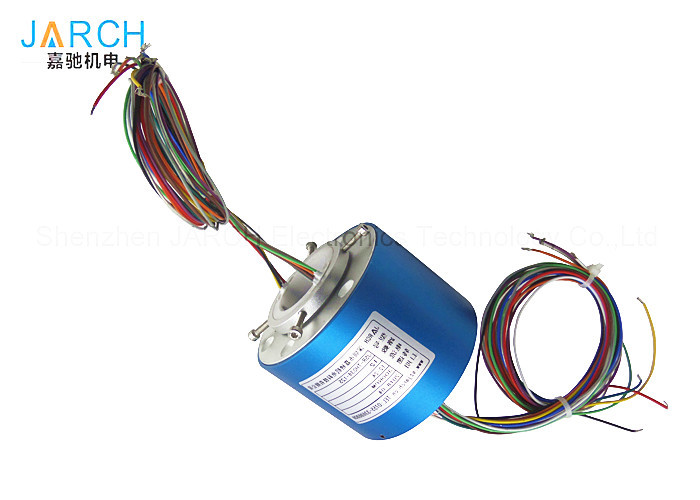

2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector

China 2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector supplier
2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector supplier 2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector supplier 2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector supplier

Large Image :  2A / 10A Through Bore Slip Ring 24 Circuits Shaft Mounting Aluminium Alloy Connector

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-TH006

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Contact Now
Detailed Product Description
Housing Material: Aluminium Alloy Contact Material: Precious Metal:Gold-Gold
Inner Size: 38mm Max Speed: 300 RPM
Current: 2A/5A Voltage: 220Vac/Vdc
Protection: IP54

JARCH 2A / 10A Through Bore high speed Slip Ring shaft mounting Aluminium Alloy connector ID 38mm2 ~ 24 Circuits



Feature:

Circuits:2-24

ID/OD:6mm/40mm

Max speed:500rpm

Housing material:Aluminimum alloy

Precision ball bearings for long life



JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring



Product Description

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

Model Explanation:
JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring
The TH038 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring



Benefits of Through Bore High Frequency Slip Ring:

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring

Dimensions of JARCH Through Bore High Frequency Slip Ring Connector ID/OD 38.1mm/ 99mm 24 Conductors:

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring

The length of slip ring will be advised when rings and current details are options . Please contact JARCH technical department.



Applications of JARCH Through Bore High Frequency Slip Ring Connector:


• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels


Installation Instructions:

Shaft Mounted

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring

Flange mounted:

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring



Related Products
Company Information

JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.

JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip RingJARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring

FAQ



JARCH Connector OD 38.1mm/ 99mm Conductors Through Bore High Frequency Slip Ring

1.What technical data should be provided for our customized slip ring model.

A:

If you want to costomize the special slip ring model, you need provide details as below:

a. Operatring speed(RPM)
b. The type of installation

c. Outline size

d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings

f. The signal type and related parameters(very important)

g. Operating temperature h.IP(sealing requirements)



2.How long is your production lead time?



A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.







Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring series

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.

Packaging & Delivery:

Packaging Details: Standard Export carton Package
