Portable Retractable Hose Reel , Diesel Emissions Fluid Extension Cord Reel

China Portable Retractable Hose Reel , Diesel Emissions Fluid Extension Cord Reel supplier

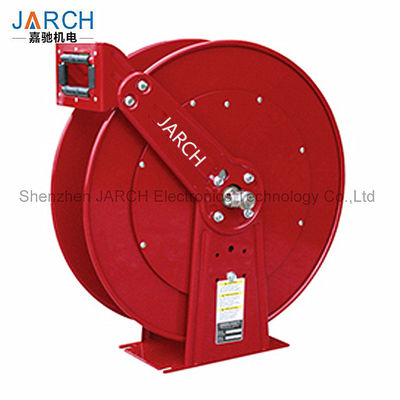

Large Image :  Portable Retractable Hose Reel , Diesel Emissions Fluid Extension Cord Reel

Product Details:

Place of Origin: China
Brand Name: JARCH
Certification: CE FCC ROHS
Model Number: JSR-UR83000 OLB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD$100-500/Piece
Packaging Details: Standard Export Paper carton or custom packing
Delivery Time: 7 working days
Payment Terms: D/P, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500Piece/week
Contact Now
Detailed Product Description
Type: Diesel Emissions Fluid Hose Reel Application: Industrial Equipment
Hose I.D.: 3/4" Hose Length: 50 Ft.
Drive Type: Spring Hose Included: No
Reel Grade: Heavy Duty Reel Max Pressure: 500
Series: 80000

JARCH Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel



Product Description

Spring Retractable DEF Hose Reel

JARCH introduces its DEF Dispensing line of spring retractable hose reels. Designed to aide in the dispensing of Diesel Emissions Fluid (DEF) for late model diesel engines, these reels are an integral part in emerging DEF service stations in marinas, truck stops and garages. This sort of dispensing equipment is going to become more prevalent across the United States as the push for greener emissions standards escalates. Reelcraft is offering a solution.
Reel Specifications and Dimensions

Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel



Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel

JARCH Spring Retractable DEF Hose Reel,Fuel Hose Reels Extension Portable Cable Reel

Benefits



***Reinforced steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.



***Long life drive spring -The unitized cast aluminum fluid path with built in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.



***Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.



***Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.



CAD Drawings

Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel



Product Effects

JARCH Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel

Application

Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel




Packaging & Shipping

Packaging Details: Standard Export carton Package
Delivery Details: Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......

FAQ



Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel

1.How do I increase or reduce spring tension?

Spring Retractable DEF Diesel Emissions Fluid Hose Reel,Fuel Hose Reels Extension Portable Cable Reel

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.



To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.



2.How do I install a new drive spring and set pre-turns?



We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

For how many wraps of "pre-tension" to put on the reel, please reference the chart below.

Spring Number Wraps Required
S400030 18
S404230 13
S504240 19
S505740 13
S503755 21
S600050 21
S600625 13
S600620 19
S504230 17
602718-80 33
602720-100 27
602720-70 25
602721-80 21
602733 33





3.Can my spring driven reel be made "constant tension"?



While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.



4.Reel will not latch



This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
