Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FE0607

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 500 - 1000 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, T/T, Western Union, MoneyGram
Supply Ability: 100pcs/Month
Get Best Price Contact Now

Detail Information

Housing Material: Stainless Steel Contact Material: Precious Metal:Gold-Gold
Lead Wire: UL Teflon® Awg26,Awg22 Dimensions: 6.8mm Diameter*28mm Length
Lead Length: 300mm Circuits: 12
Optic Channel: 1 Wavelength Range: 650-1650nm
Insertion Loss: ≤2 DB (typical: <0.5 DB) Insertion Loss Ripple: <+/-0.25 DB
Return Loss: ≥40 DB Max Speed: 2000RPM
Connector Type: FC, SC, ST, SMA, Or LC Fiber Type: Single Or Multimode W/3 Mm Jacket (Kevlar/PVC)
High Light:

1650nm Electrical Rotary Slip Ring

,

2000RPM Electrical Rotary Slip Ring

,

1 Channel Rotary Joint Ring

Product Description

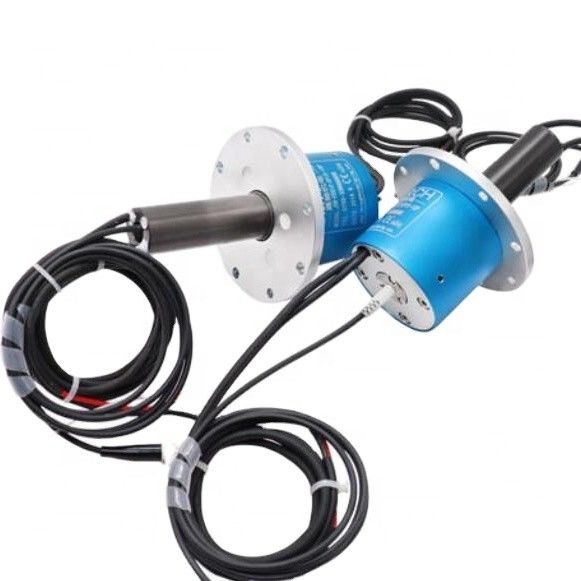

1 Channel 2000RPM 1650nm Electrical rotary slip ring

Hybrid FORJ singlemode multimode electrical slip ring with fiber optic rotating joint

Single-channel (both Single-Mode and Multiple-Mode) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. features extremely low insertion loss and impressive return loss performance for both single mode and multimode fibers.MJ1 are often used with electronic slip ring, call optical-electrical hybrid slipring, transmit power and high speed data.



Quick Details:



Model Number: JSR-FE0607 Optic Channnel:  1
Insertion loss ripple: <+/-0.25 dB Wavelength range:   650-1650 nm
Return loss (SM&MM): >40 dB(RPT), Insertion loss:  <2.0dB
Electrical circuits: 12 current: 2A



Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......


Hybrid FORJ singlemode multimode electrical slip ring with fiber optic rotating joint



Benefits:



  • Special fit for fiber optics and electrical circuits.
  • Available in single and multi-channel options
  • 1-125 electric circuits Combination + 1 channel fiber optics

Dimensions:

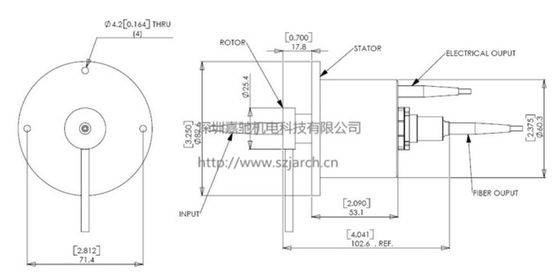

1 Channel 2000RPM 1650nm Electrical rotary slip ring 0

Installation Instructions:



1 Channel 2000RPM 1650nm Electrical rotary slip ring 1



Optic rotary joint Specifications



Wavelength range 650-1650 nm Insertion loss ≤2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB Return loss (SM) ≥40 dB
Maximum speed 2,000 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g IP rating IP 68 for all models
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G



Electrical slip ring Specifications



Rings 12 Current Signal 5A,
Voltage mV~200 VDC/VAC Max speed 1000RPM
Through bore size Fit Optic rotary joint Overall diameter 56mm(2.2")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP68 optional
Materials Lead Free, ROHS Certified CE,FCC,UL,ROHS





Hybrid FORJ singlemode multimode electrical slip ring with fiber optic rotating joint



Applications:



• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking


Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:



If you have any other question, pls contac us without any hesitation.
