Payment & Shipping Terms:
|Inner Size:||6mm||Outer Size:||56mm|
|Lead Length:||300mm||Tube Size:||4mm|
|Circuits:||3||Housing Material:||Aluminium Alloy|
|Contact Material:||Precious Metal:Gold-Gold||Lead Wire:||UL Teflon® Awg26,Awg22,Awg16|

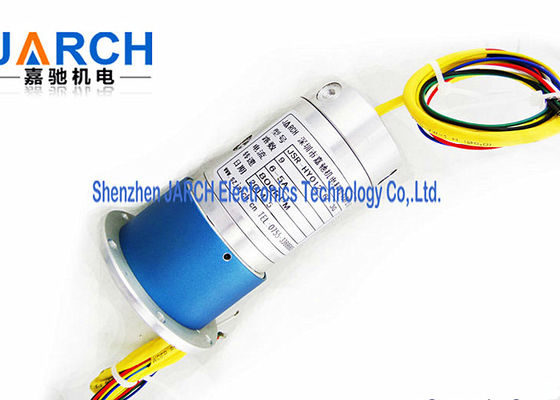

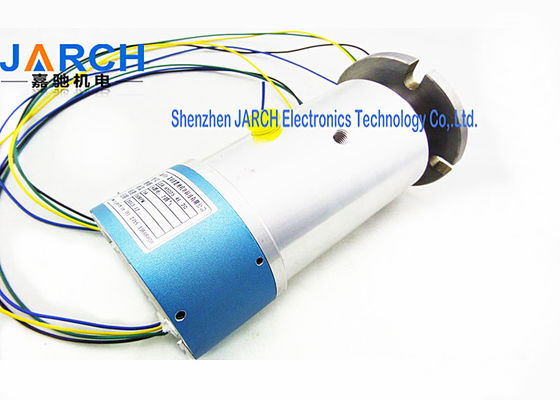

1000rpm M5 Connections Hybrid Slip Rings For Rotary Table / Industrial Machinery
2.3 passage with 4mm tube
3.3 circuits,2A current
|Model Number:||JSR-HY012-6E-3G||Inner Size(mm):||6mm|
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY025-6E-3G provide 3 passage 3mm rotary union combine 3 circiuts 2A signal electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices
· Small size
· Rapid delivery
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
|Rings||3||Current||Signal(2A) or 5A|
|Voltage||mV~240 VDC/VAC||Max speed||1000RPM|
|Through bore size||6mm||Overall diameter||56mm|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Precious Metal:Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22,Awg16|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54 (IP68 Optiaonal)|
|Materials||Lead Free, ROHS||Certified||CE,FCC|
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
