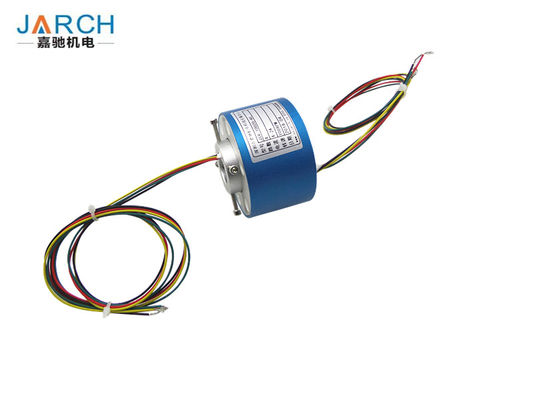

Large Image :  12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-TH012

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex works, L/C,T/T, Western Union
Supply Ability: 500pcs/week
Detailed Product Description
Housing Material: Aluminium Alloy Contact Material: Precious Metal:Gold-Gold
Inner Size: 12.7mm Outer Size: 56mm
Lead Length: 300mm Rings: 2-36
Max Speed: 500RPM (1000~3000RPM Optional) Dielectric Strength: 1000VDC@50Hz
Protection: IP54/IP68

Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector



Through Bore 12.7mm, 6~36 Conductors 500Rpm Through Bore Slip Rings



Quick Details:

Model Number: JSR-TH012 Inner Size(mm): 12.7mm
Outer Size: 56mm Circuits: 2~36
Volt AC/DC(V): mV~380Vac/Vdc Current(A):  2A/5A/15A/20A
Speed(rpm): 250~500RPM(1000~3000RPM Optional) Protection: IP54(IP68 Optional)



Packaging & Delivery:

Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time for Sample 3 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......

12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector

Description:

Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.


The TH012 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.


Benefits:

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery


Dimensions:

12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector

The length of slip ring will be advised when rings and  current details are options . Please contact JARCH technical department.


Model Explanation:

12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector

All model of JSR-TH006 series:

Model Power Signal Total Length(mm)
JSR-TH006-2S - 2 2 35
JSR-TH006-4S - 4 4 43
JSR-TH006-6S - 6 6 51
JSR-TH006-8S - 8 8 59
JSR-TH006-10S - 10 10 67
JSR-TH006-12S - 12 12 75
JSR-TH006-16S - 16 16 83
JSR-TH006-18S - 18 18 91
JSR-TH006-24S - 24 24 107


Specifications:


Rings 2~36 Current Signal(2A) or 5A/10A/15A
Voltage mV~380 VDC/VAC Max speed 500RPM (1000~3000RPM Optional)
Through bore size 12.7mm(0.5") Overall diameter 56mm(2.2")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Precious Metal:Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22,Awg16
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54 (IP68 Optional)
Materials Lead Free, ROHS Certificate CE,FCC,UL,ROHS


Applications:


• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels


Installation Instructions:

Shaft Mounted
12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector

Flange mounted:

12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector


Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series
