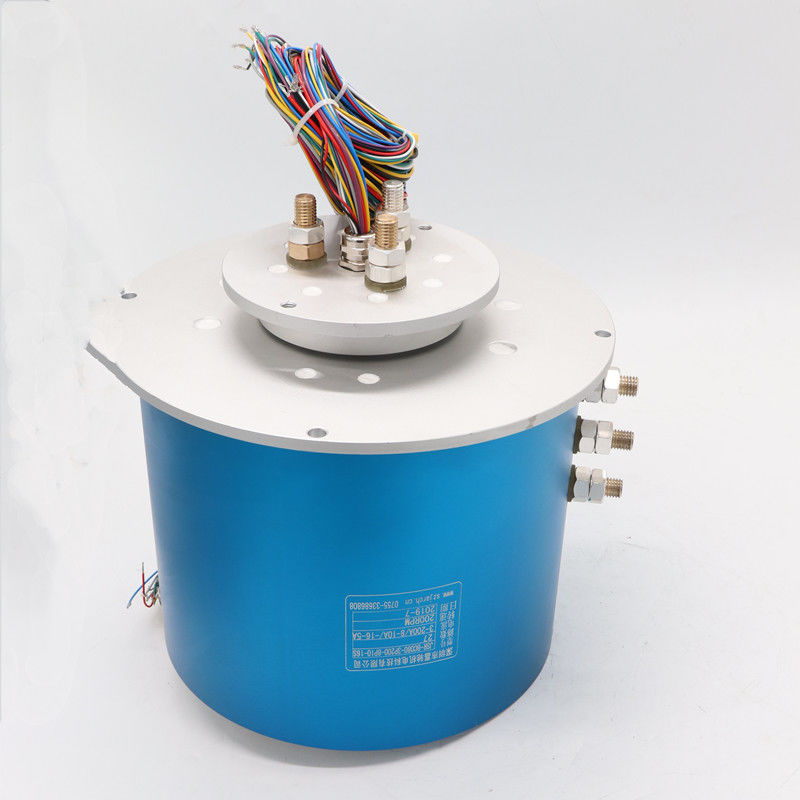

Anti Jamming 37 Wires Coaxial Slip Ring Reel Drum 16 Signal 200A

Anti Jamming 37 Wires Coaxial Slip Ring Reel Drum 16 Signal 200A

Product Details:

Place of Origin: Shenzhen,China
Brand Name: JARCH
Certification: CE,FCC
Model Number: JSR-BC080-3P200-8P10-16S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$200-500.0/PCS
Packaging Details: STANDARD FOR SHIPMENT
Delivery Time: 5~15 WORKING DAYS
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 1000PCS/MONTH
Get Best Price Contact Now

Detail Information

Contact House Material: Matel Slip Ring Channel: 27 Channels Slip Ring
IP Level: IP54~IP65 Product Name: High Current Slip Ring
High Light:

Anti Jamming Coaxial Slip Ring

,

37 Wires Coaxial Slip Ring

,

200A Through Bore Slip Ring

Product Description

JARCH 16 Signal 200A Slip Ring 37 Wires Coaxial Slip Ring Joint High Current Slip Ring For Reel Drum



Product Description
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane/excvavtor of industrical slip ring

High-current slip ring series are characterized by higher current, adopt specific design and advance technology to meet different application requirements. At present, this series we produced could be up to 800 amperes current. Please let me know your requirements, we will provide the best solution for you



The BC080 provides 12A signal for routing hydraulic or pneumatic lines. The 100~800amps /circuit are available in 1-4 ring.





Rings 2~25 Current 100A
Voltage mV~600VDC/VAC Max speed 200RPM
inner size 60mm Overall diameter 168mm
Housing Material STEEL Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material carbon
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP65
Materials Lead Free, ROHS Certified CE,FCC



JARCH 200A slip ring 37 wires coaxial slip ring joint high current slip ring reel drum

  • Unique signal handling performance with minimal electrical circuit noise
  • Very low electric noise
  • Anti-jamming ,very low cost
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional sling rings
  • Suitable for signal and power transfer of rotating devices or instruments



JARCH 3 Circuits 200A high current slip ring shaft mounted used crane/excvavtor of industrical slip ring

200A slip ring 37 wires coaxial slip ring joint high current slip ring reel drum

The Dimensions of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.

Installation Instructions:Flange Mounted



Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery



Applications:

• Packaging / wrapping machinery

• Industrial machinery

• rotary index tables

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels



200A slip ring 37 wires coaxial slip ring joint high current slip ring reel drum
