Crane Rotary Gold Contact Thermocouple Slip Ring IP68 S316L Hose Reel
Product Details:
Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | JARCH |
Certification: | CE |
Model Number: | JSR-WR050-5P50-FL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | US$500/PCS |
Packaging Details: | Standard Export Package,Underwater Equipment Flange Mounted IP68 S316L Hose Reel Crane Rotary Gold Contact Electrical Slip Ring |
Delivery Time: | 30 WORKING DAYS |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 500PCS/WEEK |
Detail Information |
|||
Housing Material: | S316L | OD: | 135mm |
---|---|---|---|
ID: | 45mm | Underwater Operation Depth: | 10m |
Circuits No: | 5 Circuits | Current Power: | 50A |
Protection Grade: | IP68 | Application: | Floating Production, Storage And Offshore Loading (FPSO) |
High Light: | Gold Contact Thermocouple Slip Ring,Crane Rotary Thermocouple Slip Ring,IP68 S316L Electrical Slip Ring |
Product Description

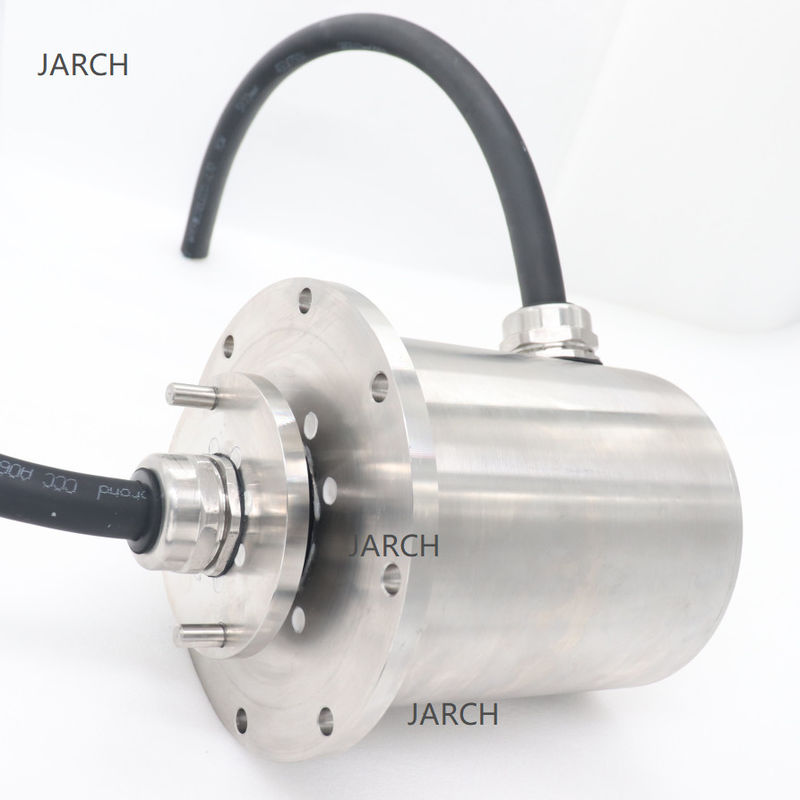

JARCH Underwater Equipment Flange Mounted IP68 S316L Hose Reel Crane Rotary Gold Contact Electrical Slip Ring
More news pls have a look of : Click here---Application of conductive slip ring in offshore cable drum
Slip rings often deploy in challenging environments that can affect their reliability and operating life. However, some slip rings withstand harsh operating conditions better than others. In order to choose an appropriate slip ring for its intended operating environment, be sure to keep the following challenges in mind:
- Corrosion. Food processing and medical equipment undergo frequent cleanings or sterilizations, while marine cable turbines and wind turbines located at sea will be exposed to salt water and spray. In each of these environments, rust must be prevented.
- Shock and vibration can occur in heavy industrial and downhole environments.
- Wear caused by contact forces in demanding applications.
- Harsh temperatures such as those found in remote, outdoor environments.
- Service life. Long service life can be a critical selection factor. You want your slip ring to last in harsh environments and reduce service calls — especially to difficult-to-reach places like downhole or in wind turbines.
Look For IP68/IP65-rated Slip Rings
If you expect your design to be deployed in a harsh environment, look for a slip ring with an IP65 rating. IP65/IP68 indicates a product resists both dust incursions and water when splashed or exposed to low pressure washdown. JARCH now offers slip rings that carry IP65 ratings and can withstand dust and moisture as well as other demanding industrial and environmental conditions.
Mainly applied production equipments such as beer machine,liquid filling machine
***The interior adopts the precious metal brush wire structure, with long service life and no maintenance;
***Can work 10 meters underwater or work outdoors, Underwater equipment;
***ID/OD 45mm/135mm, shaft connection.
- Designed for underwater operations, waterproof work and design.
- Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
- Gold - gold contact, the use of imported seals and military-grade plating treatment.
- Multi-point contact, outlet using waterproof Glen, cable, and so on.
- Can be customized according to the requirements.
Technical Data | |||
Circuits No | 4 circuits 10A | ID/OD | 45mm/135mm |
Voltage | 440 VDC/VAC | Operating speed | 0~200RPM |
Housing material | S316L | Torque | 0.1N.m;+0.03N.m/6 circuits |
Working life |
>80millions revolutions(depends on working speed, environment) |
Contact material | Precious metal:gold-gold |
Electrical Noise | <10mΩ @6VDC,50mA,5RPM | Contact Resistance | <20mΩ(AWG16#,300mm) |
Dielectric Strength | 800VDC@50Hz,10s | Lead wire Spec | UL Teflon@Awg22(5A),Awg16 |
Insulation Resistance | 1000MΩ@600VDC,10s | Lead wire length | 300mm |
Work Temperature | -40℃ to 85℃ | IP grade | IP68 |
Mechanical vibration | MIL-SID-810E | Work Humidity | 10% to 85% RH |
*** | *** | Underwater operation depth | 10 meters |
Inside material | precious metals | Certificate | CE,FCC |
Underwater Equipment Flange Mounted IP68 S316L Hose Reel Crane Rotary Gold Contact Electrical Slip Ring
Waterproof Slip rings are designed specifically for underwater operation equipment, onboard equipment and waterproof work.
Advantages of waterproof slip ring:
1. Industrial grade products:IP65.IP68 protection grade;
2. Gold to gold contact: adopting imported seals and military grade plating treatment;
3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.
Underwater Equipment Flange Mounted IP68 S316L Hose Reel Crane Rotary Gold Contact Electrical Slip Ring
IP68 Shaft mounted underwater working 10m Waterproof operation Slip Rings in ROV Technical,winch, Underwater equipment
JARCH main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Retractable Hose Reel
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Underwater Equipment Flange Mounted IP68 S316L Hose Reel Crane Rotary Gold Contact Electrical Slip Ring
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Detail: | Sample 3 days / Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
FAQ
Q1: Are you a factory or a trading company? | ||||||||||
A: We are a professional manufactory with High-level R & D team. | ||||||||||
Q2: How many types of the slip rings do you have? | ||||||||||
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
Q4: what's the working life of your slip rings. | ||||||||||
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. |
||||||||||
Q5: Do you supply OEM and ODM ? | ||||||||||
A: Yes, we supply OEM and ODM. | ||||||||||
Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) c.outline size d.channels(the No. of single wire besides cable) f.the signal type and related g.operating temperature h.IP(sealing requirements) |
||||||||||
Q7: How long is your production lead time? | ||||||||||
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. |
||||||||||
Q8: What's your delivery port? | ||||||||||
A: Our delivery port is Shenzhen |
