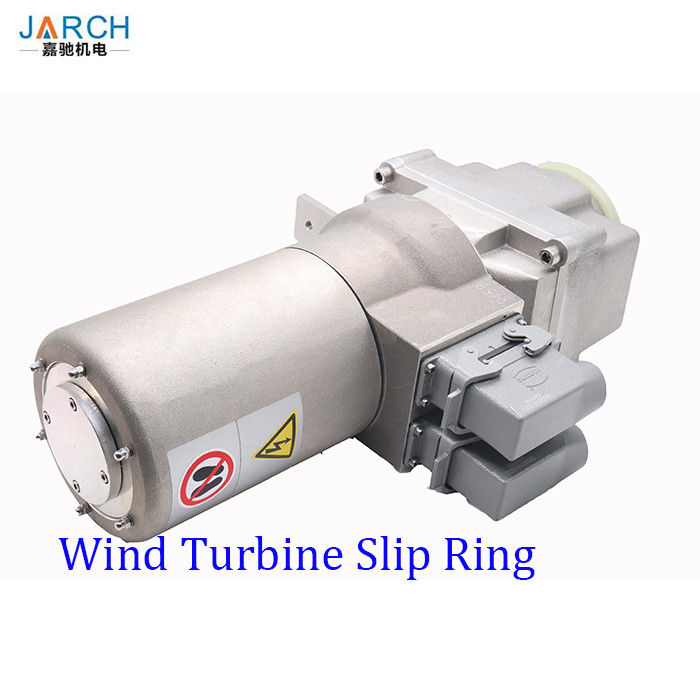

Wind Turbine Metal Housing IP65 Power Slip Ring Generator

Wind Turbine Metal Housing IP65 Power Slip Ring Generator

Product Details:

Place of Origin: Guangdong,China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-WS-31

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: US$800-1500/PIECE
Packaging Details: Standard Export Paper carton or custom packing
Delivery Time: 7-15 days
Payment Terms: D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500piece/week
Get Best Price Contact Now

Detail Information

Contact Material: Precious Metal Housing Material: Metals
Rated Current: Main Power:32A/Ring;Supporting Power:6A/Ring;Others:2A/Ring Rated Voltage: Main Power:550VDC;Supporting Power:240VAC;Others:24VDC
Keyword: Wind Turbine Slip Ring Rated Speed: 0~300rpm
Proteaction Grade: IP65
High Light:

550vdc generator slip ring

,

300rpm electrical slip ring

Product Description

JARCH Slip Ring For Wind Turbine,Power Slip Ring Generator For Wind Power Equipment



Product Description of Wind Turbine Slip Ring



Wind turbines require reliable transmission of power and data signals from the nacelle to the control system for the rotary blades. JARCH’s slip rings provide the performance and quality needed in demanding environments. Costly downtime is eliminated by using fiber brushes and robust mechanical components in the slip ring design.





Specification:



 Electrical data
Rated Voltage Main power:550VDC;Supporting power:240VAC;Others:24VDC
Rated Current Main power:32A/Ring;Supporting power:6A/Ring;Others:2A/Ring
Dielectric Strength Power: ≥2000VAC@50Hz,60s;
Signal: ≥500VAC@50Hz,60s;
Insulation Resistance Power: ≥1000MΩ/500VDC
Signal: ≥500 MΩ/500VDC
Electrical Noise

≤10mΩ

Mechanical data

Rated Speed

0~300rpm
Operating Temperature -40-+80
Operating Humidity 60%RH or higher
Contact Material Precious Metals
Housing Material Metals
Protection level IP65
Estimated Life Cycle ≥10×107@30rpm



Slip Ring For Wind Turbine,Power Slip Ring Generator For Wind Power Equipment



Wind Turbine Metal Housing IP65 Power Slip Ring Generator 0





Dimension:

Conductive slip ring for high-end rotary power generation equipment for wind turbine equipment



Wind Turbine Slip Ring



Benefits:



1. Each loop adopts multi-contact technology design, which is reliable and stable in operation;

2. It can transmit bus data such as RS485, CAN-BUS, PROFIBUS and Ethernet;

3. Anti-dust design, fully meet the dustproof requirements in desert use;

4. Standard aluminum case and outer casing;

5. Standard flange configuration, which can match well with fans of various manufacturers;

6. Suitable for 1.25-2.5MW wind turbine

7. With low temperature compensation, it is fully adapted to various harsh operating environments;

8. The torus and contacts are made of precious metal materials, which have long wear life and low contact resistance.

9. The components are easy to install and quick to replace;

10. Multi-channel signal transmission, anti-interference design;
11. Anti-vibration design, fully adapt to the vibration environment of the fan;



Applications:

Conductive slip ring for high-end rotary power generation equipment for wind turbine equipment

Slip Ring For Wind Turbine,Power Slip Ring Generator For Wind Power Equipment

Small generator slip ring Wind power equipment Surveillance cameras Encoder slip ring Mechanical arm Beer production equipment
Rotating light box Milk production equipment Rotary silver plating production line Helicopter Rotating camera Radar communication
Rolling machine Flight equipment Hot roller Tank rotating turret Molding machine Revolving door
Automatic winding machine Rides LED advertising light Production line High speed ball Shadowless lamp

Slip Ring For Wind Turbine,Power Slip Ring Generator For Wind Power Equipment



JARCH main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Retractable Hose Reel

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

17. Slip Ring Carbon Brush

18.Collector Ring Assembly

FAQ

Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 14 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 15 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



1.What technical data should be provided for our customized slip ring,Rotary joint,cable reel model.

A:

If you want to costomize the special slip ring model, you need provide details as below:

a. Operatring speed(RPM)
b. The type of installation

c. Outline size

d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings

f. The signal type and related parameters(very important)

g. Operating temperature h.IP(sealing requirements)



2.How long is your production lead time?



A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.





Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......
