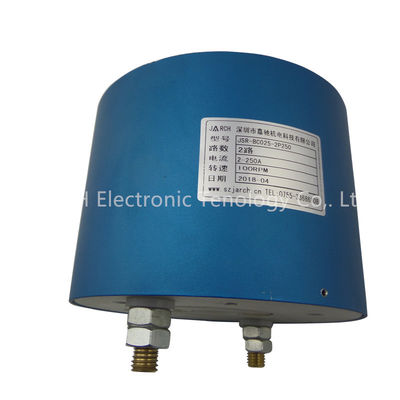

Through Hole 25 Mm High Current Slip Ring 2 Circuits 250A For Electrical Heating Cable Reel

Through Hole 25 Mm High Current Slip Ring 2 Circuits 250A For Electrical Heating Cable Reel

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-BC025-2P250

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 10 - 30 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500CS/week
Get Best Price Contact Now

Detail Information

Outer Size: BOX Housing Material: Ss304
Contact Material: Carbon Current: 2 Circuits 250A
Circuits: 2 Circuits 250A Voltage: 400Vac/Vdc
Max Speed: 20RPM Lead Wire: Optional
Protection: IP54/IP66
High Light:

slip ring units

,

rotary slip rings

Product Description

Through hole 25 mm high current slip ring 2 circuits 250A for electrical heating cable reel



Quick Details:



Model Number: JSR-BC025-2P250 Inner Size(mm): 30 mm
Outer Size: -- BOX  Circuits: 2 circuits 250A
Volt AC/DC(V): mV~400Vac/Vdc Current(A):  2 circuits 250A
Speed(rpm): 20RPM Protection: IP54 (IP66 Optional)







Description:


A high current slip ring is often used in communication devices and equipment.

is often used in communication equipment and other equipment to avoid the system in operation. And to ensure a smooth electrical connection, transmission cable will not be broken due to twisting through the use of a conductive slip ring. So how do we design a high current conductive slip ring?



The BC050 provides 3~6 Circuits 400V 300A , and 2 ~ 24 control signal .The Slip ring assebies use carbon conduction , IP66 protection is optional .



Benefits:



  • the choice of top imported graphite alloy
  • the current can be up to several hundred amps
  • compatible with the data bus protocol
  • long life, maintenance-free, no lubrication
  • 360° continuous rotation transmission power or data signal
  • compact appearance



Dimensions:

The Dimensions of Slip Ring Wil Be Advised When Rings And  Current Details Are Options . Please Contact JARCH Technical Department.





Specifications



Rings 2~36 Current Signal(2A) or 5A,10A,15A,50A,300A
Voltage mV~400 VDC/VAC Max speed 20RPM
Through bore size -- Overall diameter ---
Housing Material ss304 Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Carbon
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire  optional
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54 (IP66)
Materials Lead Free, ROHS Certified CE,FCC,ULROHS





Applications:



• offshore Crane machine

• Industrial machinery

• rotary index tables

• Heavy equipment turrets or cable reels

Floating Crane

• Portal Slewing Crane







Installation Instructions



Shaft Mounted



Through Hole 25 Mm High Current Slip Ring 2 Circuits 250A For Electrical Heating Cable Reel 0





Flange mounted:



Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
